500DFC Main Rotor Housing Set (Orange) TL50182-01
Products

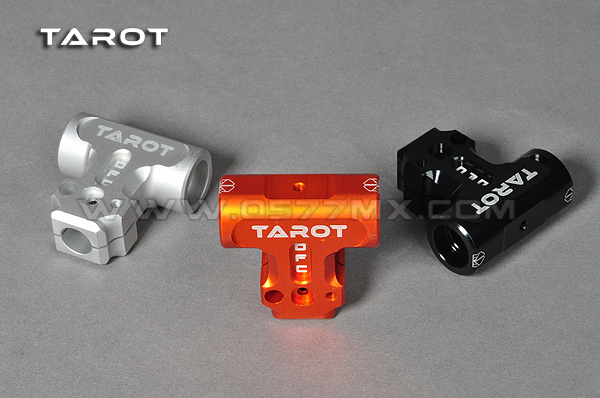

Product：500DFC Main Rotor Housing Set (Orange) TL50182-01

Category：500 Helicopter Parts

Price：50 RMB

Date：2012-09-28

Hits：8024

Product description:


· Applicable to T-REX TAROT 500 DFC rotor head.

· 6061-T6 aluminum alloy material and CNC processed.

· New DFC Main Rotor Housing with shaft locking design, 3-point fastening make the main rotor housing and shaft more tightly.

· Weighs only 21.8 grams.

· Screw nut locating hole. No wrench request, easy to use.

· The top of housing with scale line. Easy to adjust the pitch of main rotor grips.

· Very strong and durable.

· The rotor head system utilizes extreme low CG design, effectively reduces resistance during flight, increased flight responsiveness and precision, resulting in superior 3D performance and unimaginable flight speed with extremely attractive design.

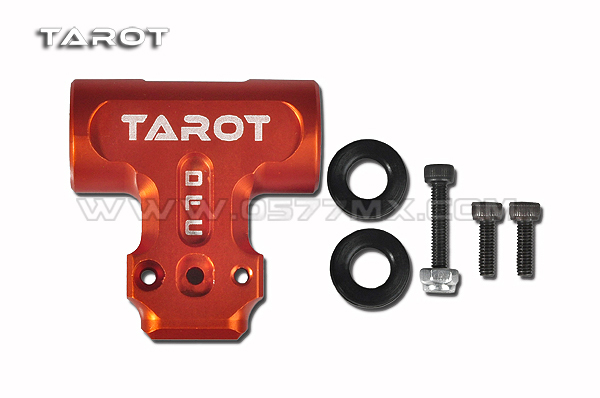

Specifications:


· 500 DFC Main Rotor Housing Set x 1

· 500 DFC demper x 2 (Φ6xΦ11x4mm)

· Hexagon cup head screw x 1 (M2.5 x14mm)

· Hexagon cup head screw x 1 (M2.5 x8mm)

· M2.5 Anti-slip nut x 1

· Weight: 21.8g
