Product Description:
Supported with high voltage battery
Unique fire retarded and anti-ignition design
High current resistance

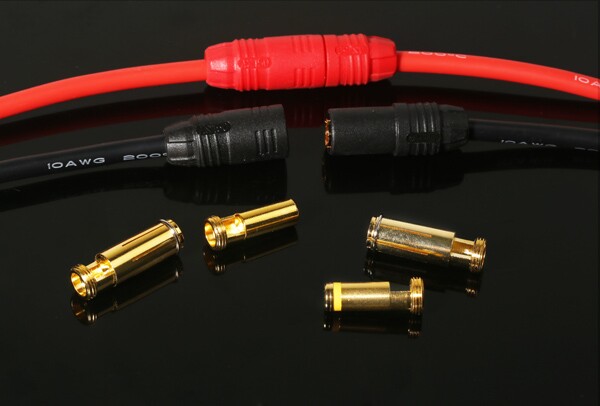

Super large 7mm low impedance gold plated banana plug is adopted
Resistance is embedded in the male plug to prevent sparks
Ultra-light weight, small volume, good pulling and inserting feel
How To Use As150:

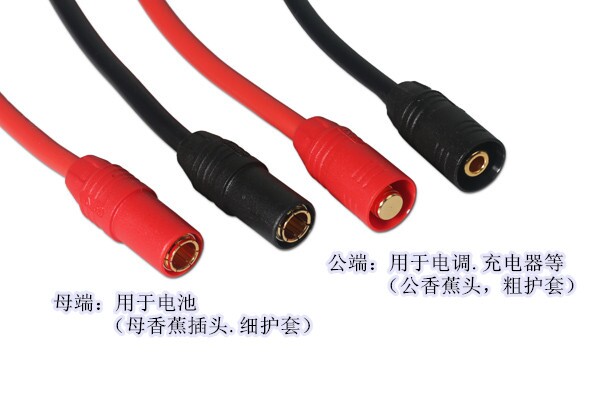

Red male head (with resistance) + Black male head (without resistance) = tl2912 (male banana head, thick sheath) is used to connect the electronic speed controller
Red female head (no resistance) + black female head (no resistance) = tl2913 (female banana head, thin sheath) is used to connect the battery
Attention:
First plug in the black terminal wire, and then plug in the red terminal wire. After the head of the red male head contacts the female head, it needs to be directly inserted to the end to avoid prolonged contact and burn the internal resistance of the male head. The patented resistance design is only used for discharging sparks when first contacted.
Related Product Number:
As150 Anti-spark plug / pair tl2911
As150 plug for Electronic Speed Controller end /with resistance and anti-ignition tl2912
As150 plug for battery end set / no resistance tl2913

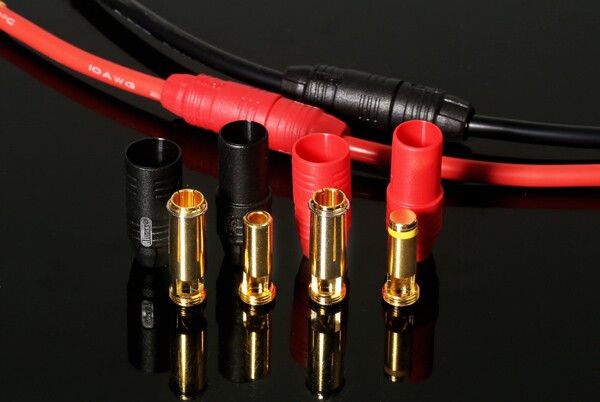

Package Content:
AS150-M/7MM male banana head (with resistance to prevent sparking) × 1
AS150-M/7MM male banana head (no resistance) × 1
Red thick sheath × 1
Black thick sheath × 1
AS150-F/7MM female banana head (no resistance) × 1
AS150-F/7MM female banana head (no resistance) × 1
Red thin sheath × 1
Black thin sheath × 1
