Product Description:·Tarot's Martin Series 8120/95KV Long Endurance Brushless Motor is designed and built for long endurance multirotors;
·Fully CNC machined,with a smooth,non-marking flat profile and excellent balance;
·The rotor is made of high magnetic material NdFeB;
·Stator with high strength epoxy resin pressurized and reinforced to protect against high temperatures;
·High flux outrunner motor with special balancing calibration;
·Improved the vibration problem caused by the poor balance of ordinary outboard motors;
·Motor shaft is made of high speed alloy steel;
·The upper and lower covers of the motor adopt large-size high-speed precision bearings, which have the advantages of low friction torque,low power loss,shock resistance,and strong radial support at instantaneous high speed;
·8120/95KV new generation of brushless motors have passed rigorous dynamic,static,magnetic field characteristics,high temperature resistance,demagnetization loss,motion vibration,noise,load performance and other engineering and technical proofs;
·Continuing to inherit the Tarot brushless motor:long life,high efficiency,low power consumption,low noise,stable control of the superior characteristics;
·For optimal performance, use with our company's motor mount (TL1813) and propellersTL100D38).
Product Parameters:Support lithium battery section: 12S

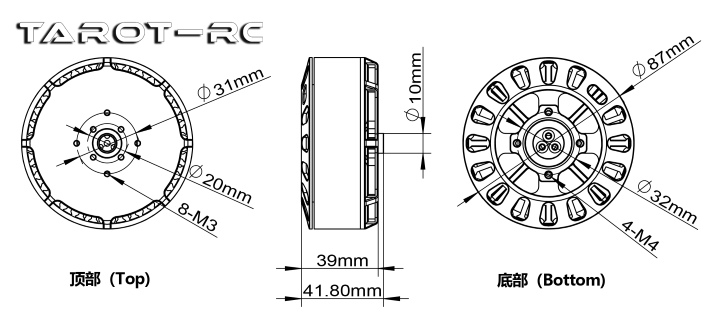

Props mounting diameter: 20mm/31mm
Recommended props size: 30 inch
Motor shaft diameter:φ10mm
Motor height: 39.0 mm
Motor mounting hole spacing: 32mm symmetrical hole spacing
Motor Outer Diameter: 87.0 mm
Stator diameter: 81.0mm
Stator end thickness: 20.0mm
Stator ends: 36N
Motor poles: 40P
No-load speed at 20V: 2000±5% RPM
No-load current at 20V: ≤1.4A
Lead wire length and terminals: Bare wire 70mm
Motor weight: 520g
Packaging List:Martin 8120/95KV Motor ×1
Semi-Round Head Screws (M4*10mm) ×4
