Tarot Φ16MM Metal Dual motor mount/B TL68B43
Products

Product：Tarot Φ16MM Metal Dual motor mount/B TL68B43

Category：Motor Mount/Quick Release/Fixing Parts

Price：67 RMB

Date：2015-07-09

Hits：13901



Product Description ：
  • Tarot 16MM dual motor suspension mount is able to 2 motors for larger thrust and longer flight time.
  • Equipped with the damper ring to reduce vibration.
  • 6061T6 aluminum alloy applied, full CNC processed.
  • Applicable to booms with 16mm diameter DIY modifications
  • Lightweight and dual-color designed, which can be recognized easily in the air.
  • Motor installation: 16MM/19MM/25MM/27MM equilateral triangle installation

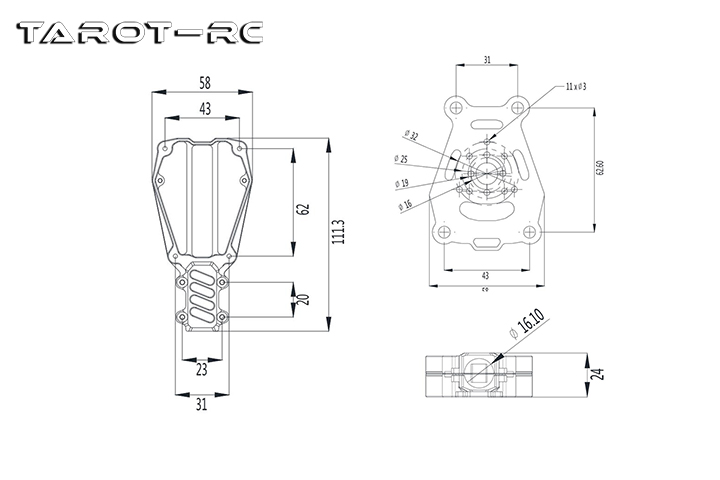

Specification:
  • CF fix plate x2(76x58x1.6MM) 8.5G
  • Metal motor upper mount x1(111x58x10MM) 28G
  • Metal motor downer mount x1(111x58x13MM) 35G
  • M3x10MM hex collar screw x8
  • M3x6MM hex step screw x4
  • M2.5x6MM hex step screw x2
  • Φ3.2 hex damper ring x4 (7x8MM) 0.3G
