Tarot 25MM Dual Motor Mount/Red TL96033
Products

Product：Tarot 25MM Dual Motor Mount/Red TL96033

Category：Motor Mount/Quick Release/Fixing Parts

Price：79 RMB

Date：2015-07-16

Hits：14385


Product Description ：
  • Tarot 25MM dual motor suspension mount is able to 2 motors for larger thrust and longer flight time.
  • Equipped with the damper ring to reduce vibration.
  • 6061T6 aluminum alloy applied, full CNC processed.
  • Applicable to booms with 25mm diameter DIY modifications
  • Lightweight and dual-color designed, which can be recognized easily in the air.
  • Motor installation: 16MM/19MM/25MM/27MM equilateral triangle installation

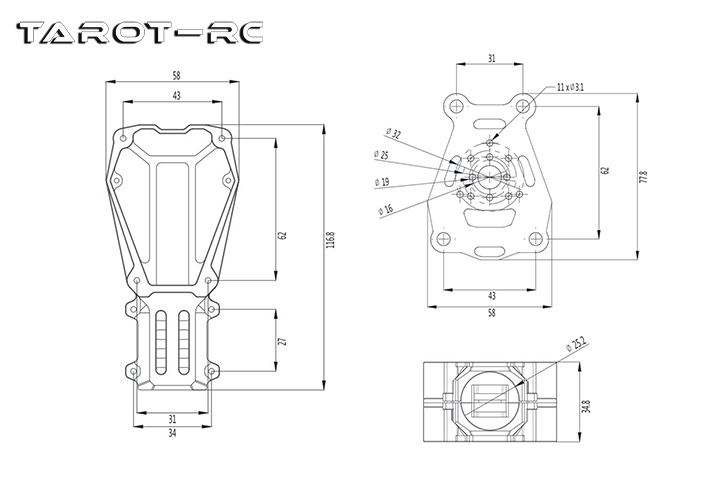

Specification:
  • CF fix plate x2(66x51x1.6MM) 6.9G
  • Metal motor upper mount x1(116x58x17.5MM) 52.8G
  • Metal motor downer mount x1(116x58x17.5MM) 56.6G
  • M3x10MM hex collar screw x8
  • M3x6MM hex step screw x4
  • M2.5x6MM hex step screw x2
