25MM Plastic Motor Mount/Red TL96027-02
Products

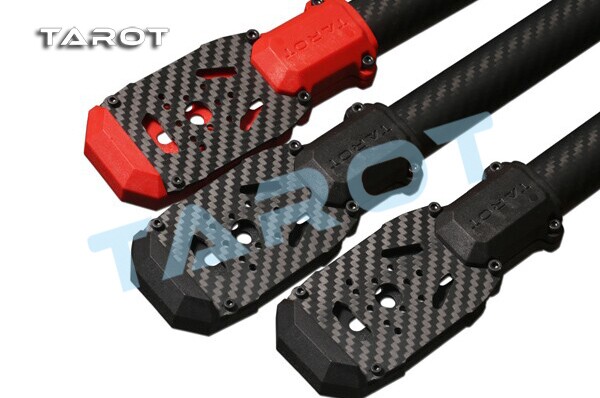

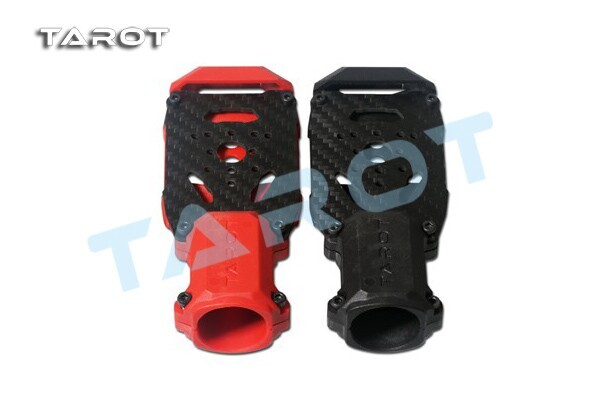

Product：25MM Plastic Motor Mount/Red TL96027-02

Category：Motor Mount/Quick Release/Fixing Parts

Price：39 RMB

Date：2014-08-01

Hits：11995




Product Description ：

· Applicable to 25MM diameter boom and multi-copter modification (T810/ T960/ TL100B01).

· Reinforced PC injection processed.

· With brushless ESC installation hole on the back.

· Clamp design, easy to adjust motor mount level.

· Motor installation:16MM/ 19MM/ 25MM/ 27MM equilateral triangle installation

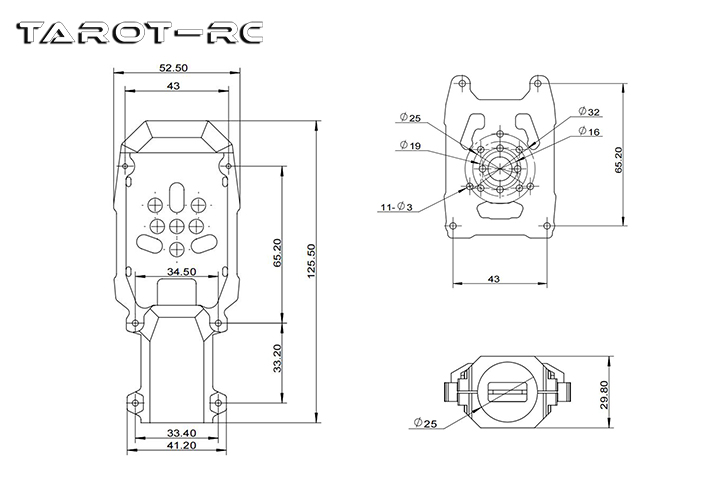

Specification:

· 25MM Multi-copter Motor Mount x1 (125x30x52.5MM) 43G

· T2.0 Motor Installation Plate x1(74.5x51MM) 11G

· M3.0 x 10MM Cup Head Hex Screw 0.9G x4

· M2.5 x 10MM Cup Head Hex Stepped Screw 0.8G x4
