Product Description:

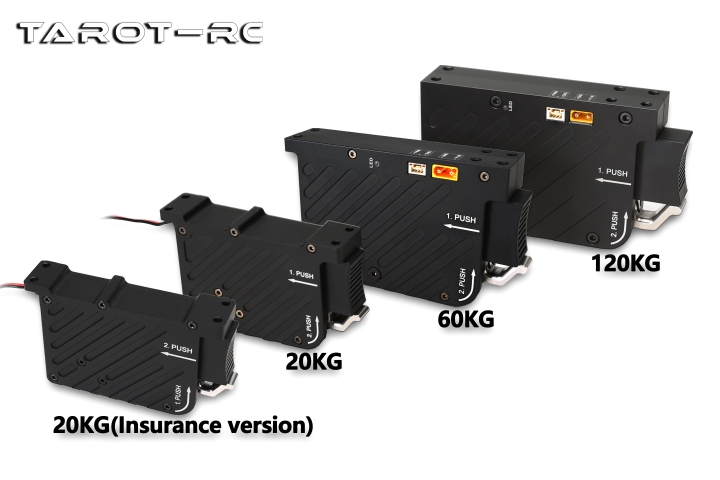

·Tarot factory electronic drone thrower;
·CNC machined from 6063 aircraft aluminium and 304 stainless steel;
·Construction using the design principle of mechanical levers;
·Reduces the output power required by the drive mechanism;
·The compact size of the throwing device and the articulated structure of the lever will not jam due to the weight of the load (80KG load in the extreme test and smooth retrieval);
·You can mount multiple electronic throwers from this range depending on the environment in which they are used;
·And the sequence of throwing devices can be controlled independently.
Product Parameters:
Voltage:DC12-60V
Size:95.6mm*60.6mm*23mm
Weight:178g
Product operating instructions and LED status light description:
Note:This product uses standard PWM remote control servo signal analysis(the following description assumes a 0-100% travel amount as a result of the analysis)
1:When the PWM signal input value remains at 0-59% travel,the red LED is always on/no device action.
2:When the PWM signal input value reaches 60-100% travel, trigger the device drop switch, LED green light single flash once, after the end of the drop LED light to keep the green light always on (1 trigger to perform 2 consecutive drop operation).
3:LED red light flashes(2 times/second)when no PWM signal input is detected by the device.
4:When power-on initialisation,the LED flashes green(2 times/sec)if the detected PWM signal input value is at 60-100% travel,until the PWM signal input value is adjusted to 0-59% travel when the operation of Article 1 is triggered.
Note: Hot plugging and unplugging of the product is strictly prohibited (the device must be connected first and then energized).
Packing List:
60KG Electronic Thrower ×1
2.0-3P To Dupont head connection cable ×1
Cup head screw(M4*14mm) ×6
|
