Accessories: - Support Camera: GOPRO HERO3 / HERO4 / other similar cameras
- Input Power: 2S ~ 6S LiPo battery
- Mechanical / electrical characteristics:
- Angle control accuracy: ± 0.02 °
- Maximum controllable speed: Pitch direction (TILT): ± 200 ° / s
- Controllable range of rotation: Pitch direction (TILT): -120 ° to + 15 °
- Operating Current: 30mA (@ 25V) 50mA (@ 12V)
- Stall Current: 350mA (@ 25V) 700mA (@ 12V)
- Working temperature: -20 ° C ~ 50 ° C
- Weight: 160g
- Size: 99mm × 95mm × 105.6mm

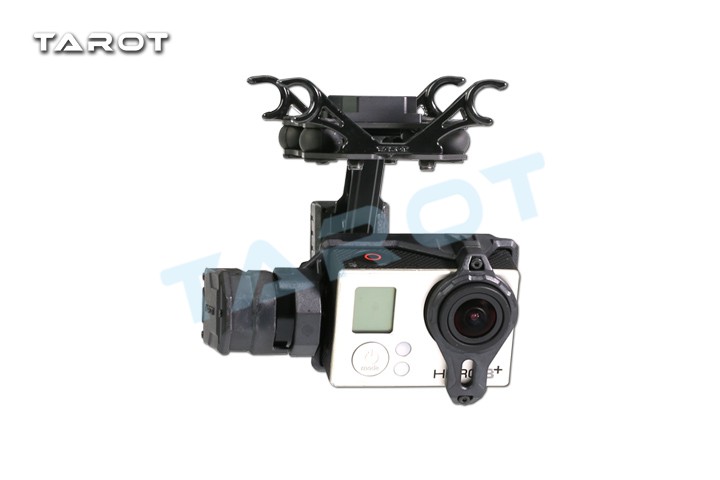

Specification: - Tarot 2-axis Brushless Gimbal x1
- Main controller module x1
- Connector cable x1
- 5V output, servo and video cable x1
- USB module x1
- Flight controller connector x1

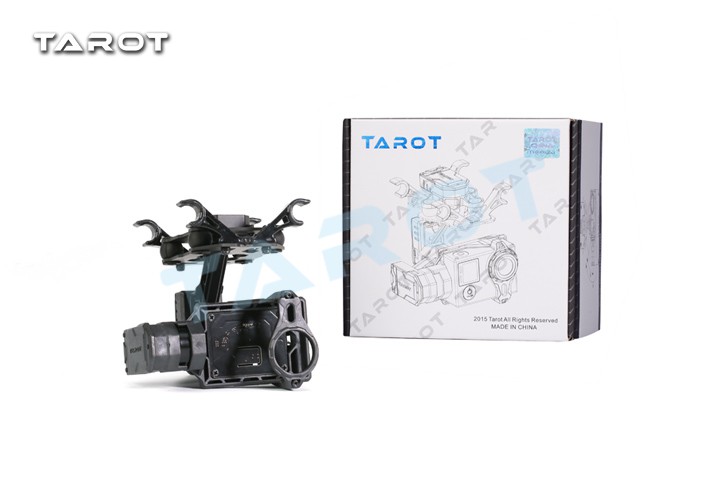

- Box x1
|
