Product Description:
·Tarot company produced 1080P HDMI to AV analog signal module;
·It is a video signal conversion accessory specially developed for drones;
·Adopting high-performance chip,it can keep the picture clear and smooth at all times;
·The product mini compact and lightweight, weight only 17g.
Product Parameters:
Product name: HDMI2AV module
Input voltage: 10-30V
Delay: 60 milliseconds
Output HDMI cable length: 300mm
Operating ambient temperature: -20 to 50℃

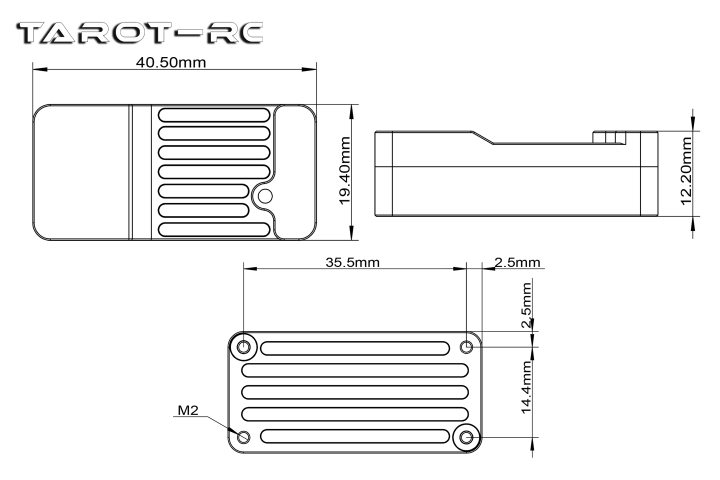

Size: 40.5mm*19.4mm*12.2mm
Weight: 17g
Caution:
1.Only support HDMI to AV one-way conversion;
2.HDMI video source such as its own battery,power on:first power on the module power supply, and then power on the video source power supply; power off: first cut off the video source power supply, and then cut off the module power supply;
3.Default cable length 300mm, can replace the 500mm cable length, can also be customized to other lengths. Match with our TL10A11 series various adapters to use.
Packing List:
HDMI to AV module (cable length 300mm) ×1
1.0-8P single head cable/150mm ×1
Cup head screw(M2*6mm) ×2
