Product Description:

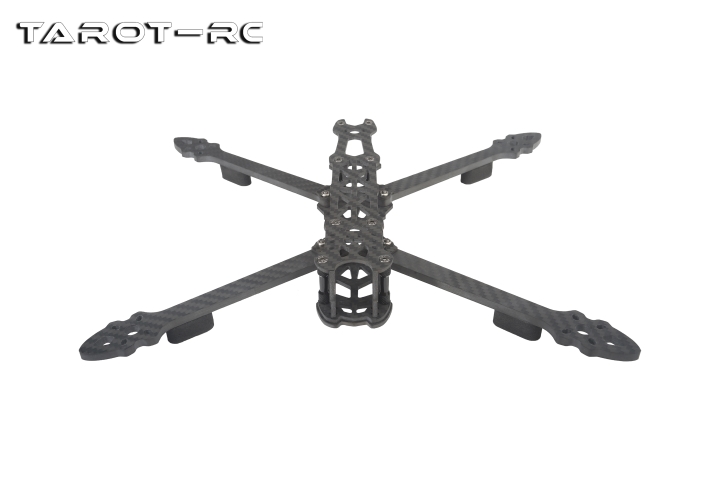

·Tarot's new 7-inch FPV racing drone;
·Made of high quality 3K twill carbon fiber board, strong and durable;
·Exquisite appearance design, is the preferred rack for FPV racing drone;
·Paired with the recommended configuration, it can achieve an idle endurance of up to 35 minutes.
Product Features:
1.H-frame structure design, shorten the length of the arm, reduce the weight and increase the strength of the arm;
2.Large center plate mounting space, arm mounting option to the bottom, more installation space can be obtained;
3.Front-end FPV lens mounting position size adjustment standard 19mm * 19mm;
4.The middle of the Flight Controller&ESC mounting position and the rear of the Transmission mounting position reserved for 30.5mm * 30.5mm and 20mm * 20mm mounting holes, providing more options;
5.Standard with vibration damping silicone, which can reduce the pressure of vibration to the flight control to a greater extent, so as to achieve smooth flight.
Product Parameters:
Frame type: H type
Maximum supported props: 7inch
Wheelbase：295mm
Dimension: 193mm*223mm
Weight: 121g
Bottom plate thickness: 2.5mm
Top plate thickness: 2.5mm
Arm thickness: 5mm
Camera mounting pitch: 19mm
Installation hole distance of the transmission: compatible with 30.5mm/20mm
Flight control installation hole distance: compatible with 30.5mm/20mm
Flight control: RF/KISS/F3/F4/F7
Product Specifications:
Frame top plate (2.5mm) × 1
Frame bottom plate(2.5mm) ×1
Arm(5mm) ×4
FPV lens fixed side plate (2.5mm) × 2
Front protection frame plate (2mm) × 1
Rear protection frame plate(2mm) ×1
Arm clamp (2mm) × 2
Battery anti-slip pad ×1
Mesh aluminum column M3*25 ×4
Mesh aluminum column M3*18 ×4
Flight Controller&ESC damping silicone ×8
Transmission damping silicone ×4
Shock-absorbing sponge stand ×4
Battery Velcro strap ×1
Nylon cable ties ×10
Heat shrinkable tube ×1
Half-round head screws (M3*20mm) ×4
Half-round head screws(M3*14mm) ×4
Half-round head screws(M3*12mm) ×8
Half-round head screws(M2*4mm) ×2
Flat head screws(M3*10mm) ×4
Flat head screws(M3*8mm) ×8
Metal nut M3 ×4
Nylon nut M3 ×8
