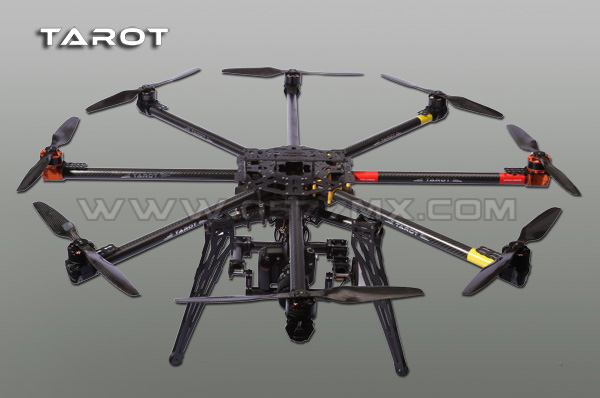

Product Descriptions:
· Carbon content 100% TORAY 3K carbon fiber applied, CNC processed
· The quality of 2.0mm thick matte carbon fiber is higher than products available on market.

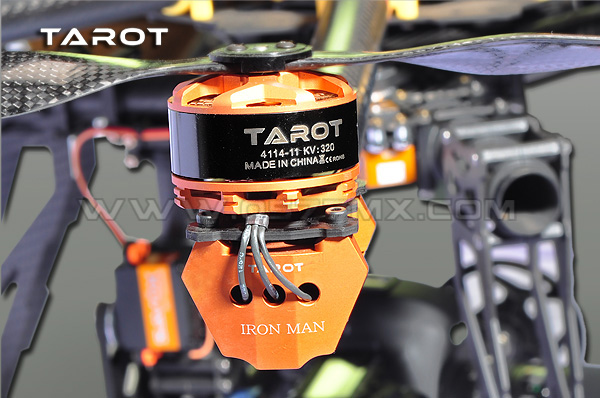

· Motor mount is 6061T6 aluminum alloy CNC processed
· Lightweight design, and dual-color, which can be recognized easily in the air
· The whole set is only 1.6 kg weight (lading skid included)

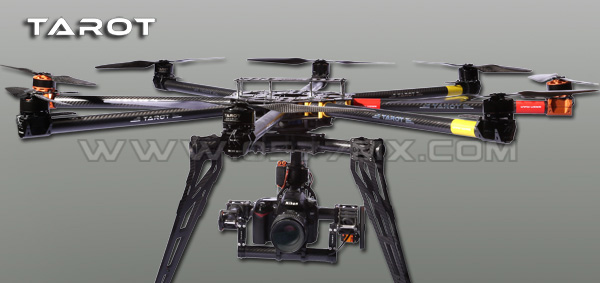

· Payload is up to 8 kg, which is specific for 5DII, RED EPIC, C300, FS100, FS700 and large-sized photographic equipments
Specifications:
· Boom diameter: 25MM
· Diameter (motor to motor): 1020MM
· Frame diameter: 1070MM
· Height: 380MM
· Central plate: 250x240 MM
· Motor installation space: 16MM/19MM/25MM/27MM equilateral triangle installation
Product Specifiction
· Pure carbon fiber upper plate (250x240x2.0MM) x1
· Pure carbon fiber upper plate (250x240x2.0MM) x1
· Pure carbon fiber lower plate (250x240x2.0MM) x1
· M3 nut x48
· Pure carbon fiber battery mount (220x63x2.0MM) x1
· Pure carbon fiber adapter (73x73x2.0MM) x1
· M3x35MM (H7) hexagonal aluminum bolt x6
· M3x12MM (H7) hexagonal aluminum bolt x4
· Pure carbon fiber ESC mounting plate (92.0x41.0x2.0MM) x8
· Pure carbon fiber ESC adapter (35x38.6x2.0MM) x16
· Φ25MM 3K pure carbon tube (495MM)
· Metal Φ25MM motor mount x8
· M3x24 cup head hexagonal collar screw x24
· Pure carbon fiber side plate of landing skid/ left (345x150x2.0MM) x3
· Pure carbon fiber side plate of landing skid/ right (250x240x2.0MM) x3
· Φ25MM boom clamp x60 (dual-color)
· M3x35 cup head hexagonal collar screw x60
· Vibration absorbing foam x3
· M3x10MM aluminum bolt x3
· M3*5MM button head socket screw x18
· M2*18Mm cup head hexagonal collar screw x3
· M2 lock nut x1
· Dual-color sticker x4
· Large-size water sticker x8
· Battery hook and loop tape x1
· Instruction manual x1
Acc:
· TL100B07/TL100B03/TL100B04/TL100B05/TL100B06-1/TL100B09/TL80B05/
· TL80B04/ZYX15/ZYX16/ZYX17/ZYX18/TL100B08/TL100A02/TL2812/TL2813/
· TL100B08/1000-015000MAH
