Product Descriptions:

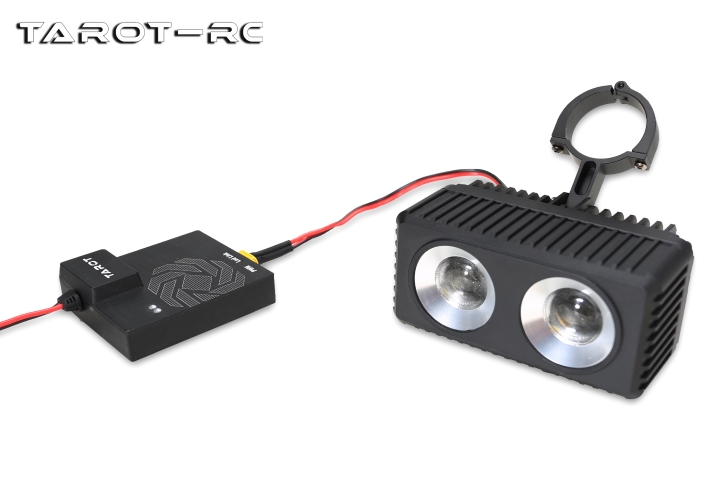

Tarot's stepless searchlight,using dual bead assembly,irradiation angle of 35 degrees in the maximum power of 50W work,will produce 8000Lux,50 meters away from the spot center illumination value of 8.5Lux;in 50 meters of the irradiation height of the effective irradiation area of 910 square meters.This searchlight adopts PWM signal control stepless dimming and flashing function.The overall ultra-lightweight design,weight 203g,can be installed in the 25mm diameter arm or tripod,can meet the night patrol\warning to drive away\directional indication\power patrol\search and rescue and other night work needs.
Product Parameters:Size:126*131*167mm
FOV:35°
Supply Voltage:4-6S (Maximum 27V)
LED Power:50W
Luminous flux:8000Lux±3%(power:50W)
Luminous efficacy:160Lux/W(power:50W)
Illuminated area:910㎡(distance:50m)
Central illuminance:
8.5Lux(power:50W;distance:50m)
Product operation instructions and searchlight work:Note: This product uses the standard PWM remote control servo signal resolution (the following description to resolve out the results after assuming that the amount of 0-100% travel)
1: When the PWM signal value range stays at 40-60% travel, the searchlight turns off;
2: When the PWM signal value range is 39-0% travel, the searchlight stepless dimming is always on (39% darkest, 0% brightest);
3: when the PWM signal value range in 61-100% travel, searchlight infinitely dimmable burst flash (61% darkest, 100% brightest).
Caution:1.Searchlight in the drone before takeoff,please do not full power output,keep in 30% power,after takeoff can be 100% power operation;

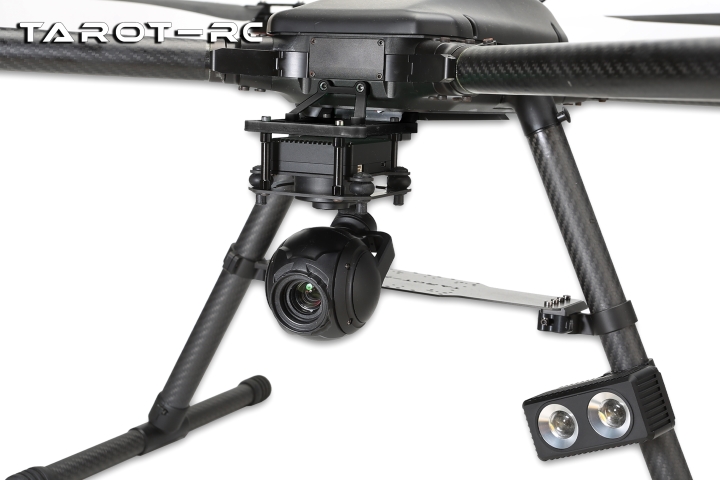

2.Searchlight needs sufficient heat dissipation conditions,please install in the UAV prize leaf rotation wind blowing position;
3.Searchlight body temperature increases gradually with the increase in power,and please do not touch the searchlight body directly with your hands to avoid burns.
Packing List:

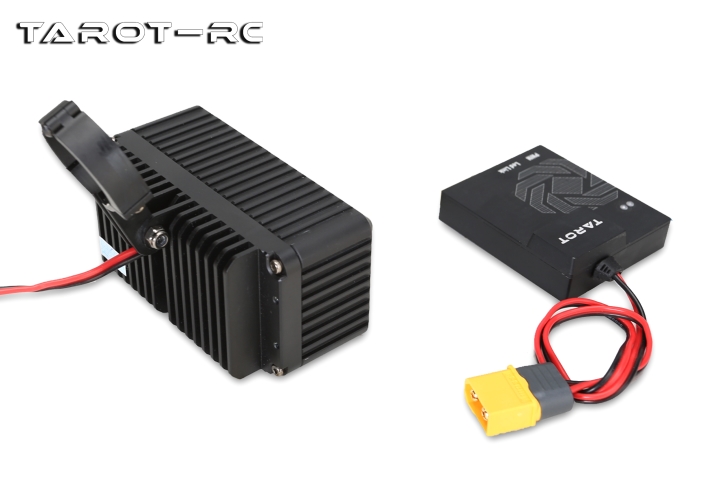

Searchlight(138g) ×1
Searchlight controller(44g) ×1
