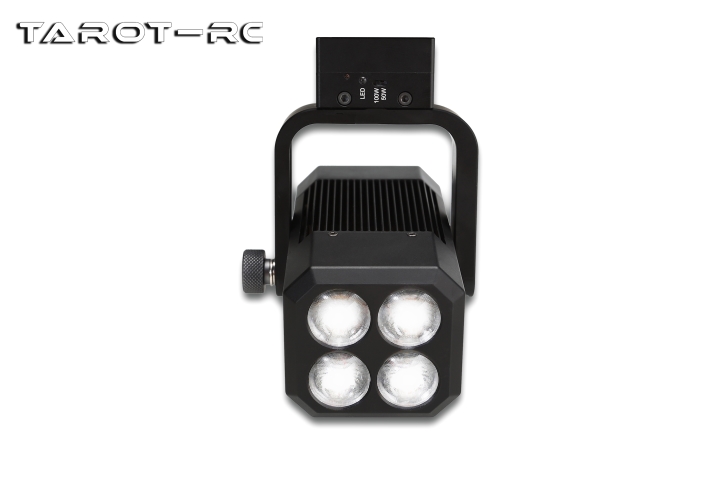

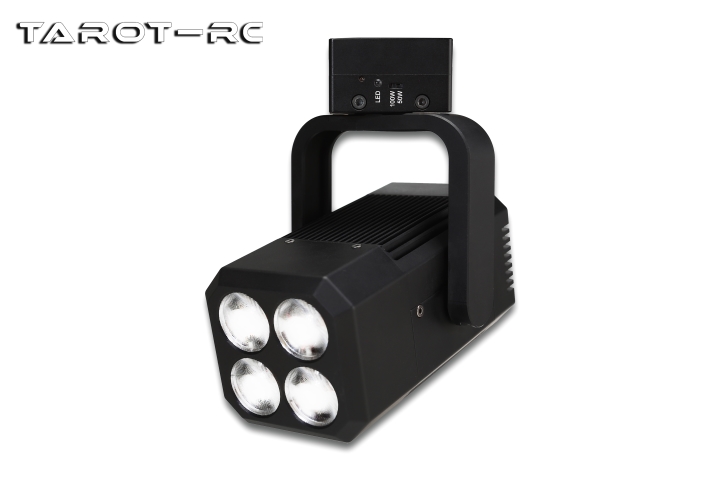

Product Description：·Tarot's stepless searchlight with a four-bead assembly;
·Angle of illumination 35 degrees, up to 14000 Lux at 100W maximum power;
·Spot center illuminance value of 17 Lux at a distance of 50 meters;
·In 50 meters of irradiation height under the effective irradiation area of 910 square meters;
·This searchlight supports stepless dimming, burst flash, the overall use of ultra-lightweight design, weight 305g;
·Located in the 19mm * 29mm mounting holes diy installation, convenient and quick manual adjustment of the angle of the two axes;

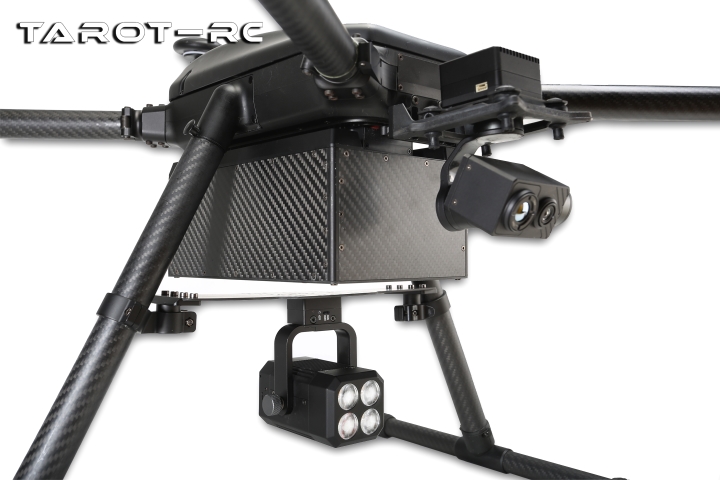

·Can meet the night inspection, warning and drive away, orientation instructions, power patrol, search and rescue and other night operations needs.

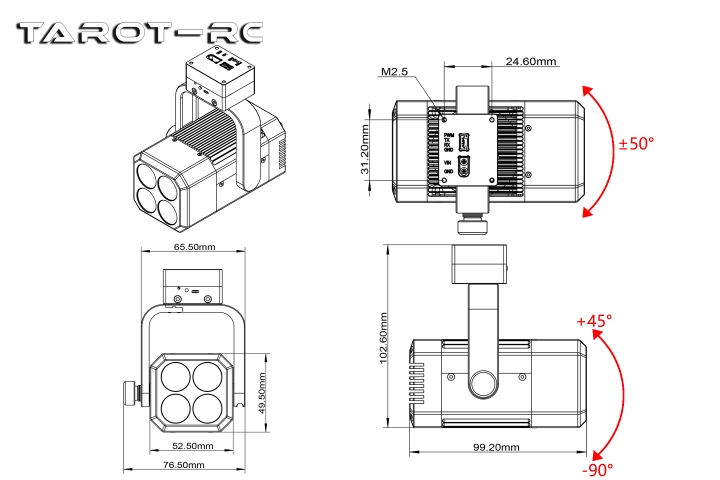

Product Parameters：Dimensions：99.2*100.5*76.5mm
FOV：35°
Supply Voltage：DC 25-60V
LED power: 50W/100W adjustable
Luminous flux: 14000Lux±3%(power: 100W)
Luminous efficiency: 140lux/W (power: 100W)
Searching area: 910 square meters (distance: 50m)
Center illumination: 17Lux (power: 100W; distance: 50m)
Supported modes: Normally Bright/Stepless Dimming、Burst flash/Stepless Dimming
Cooling method: active cooling (with fan)
Control Method：PWM、Mavlink、potentiometers
Mounting hole：19mm*29mm(M2.5*4)

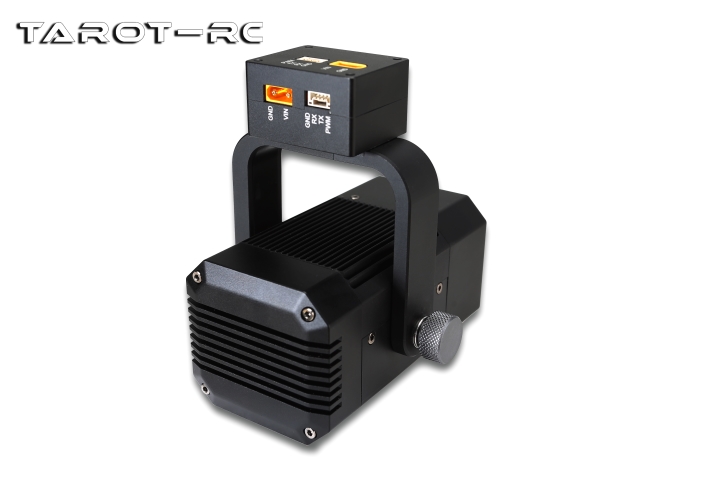

Outlet: Horizontal/Vertical
Installation: support two-axis angle manual adjustment (Yaw axis + Pitch axis)
Adjustment Angle: Yaw Axis ±50°; Pitch Axis -90°~+45
Product operation instructions and searchlight work:Note: This product supports PWM, Mavlink, potentiometer signal control, the following PWM signal control to do the operation description.
PWM remote servo signal analysis (description to parse out the results of the assumption of 0-100%)
1: When the PWM signal value range stays at 40-60%, the searchlight turns off;
2: When the PWM signal value interval in 39-0% searchlight stepless dimming is always on (39% darkest, 0% brightest);
3: when the PWM signal value interval in 61-100%, the searchlight stepless dimming burst flash (61% darkest, 100% brightest)
Caution：1.Searchlight with active cooling fan, power that will start the fan idling, and then gradually accelerate the speed with the rise in temperature；
2.In order for the searchlight to have sufficient external passive heat dissipation, mount it in a location where the wind can reach the rotating blades of the drone；
3.The temperature of the searchlight body increases gradually with the increase in power, please do not touch the searchlight body directly with your hands to avoid burns.
Packing list:Searchlight(305g) ×1
Wiring kit ×1
