Product Description:·Tarot's 120W High-Power S.UBEC Buck Power Supply Module;
·The product design features high voltage resistance, high power capacity, and strong overload protection capabilities. It incorporates voltage and current detection functions and is compatible with mainstream flight control systems.

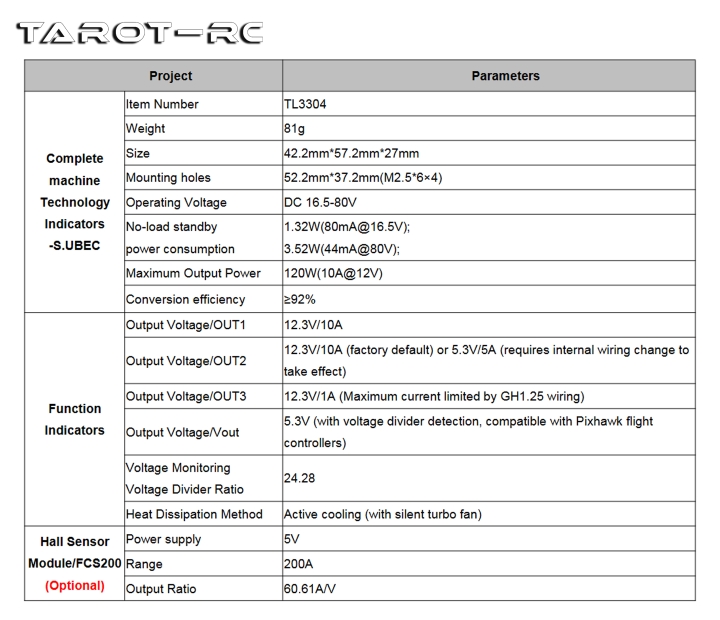

Product Features:1.Wide voltage input design, supporting up to 80V input;

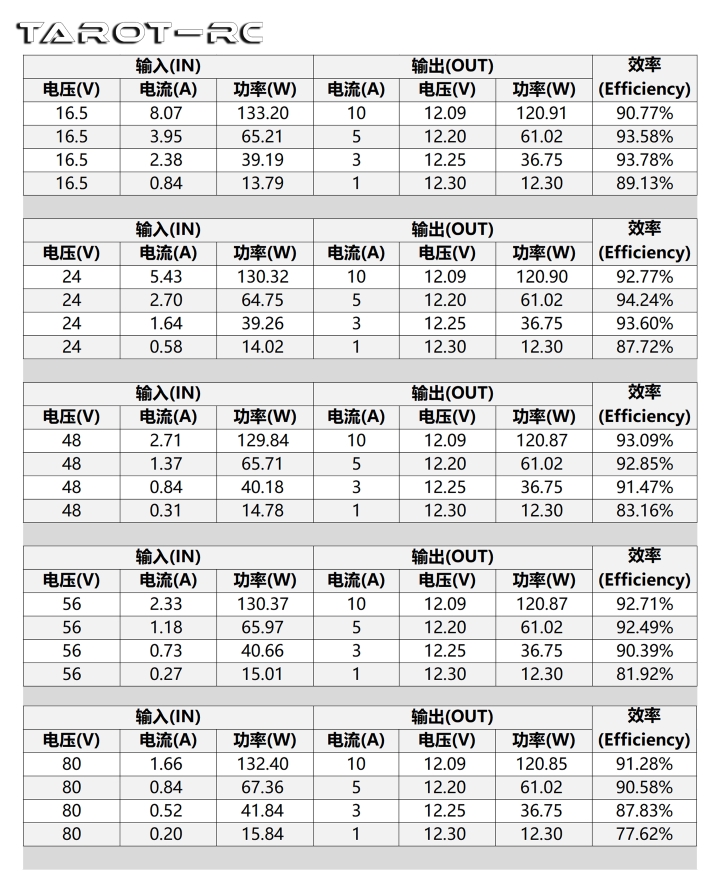

2.High-power output, maximum support up to 120W output;
3. Three primary 12.3V outputs (total 10A) for powering 12V devices;
4. Secondary 5.3V buck output (total 5A) for powering 5V devices;
5. Primary circuit supports up to 33A transient overload;
6. Built-in low-temperature drift, high-precision voltage sampling resistor;

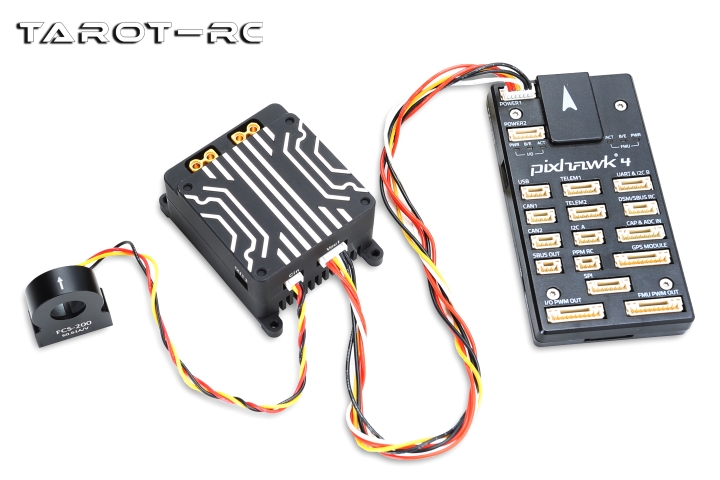

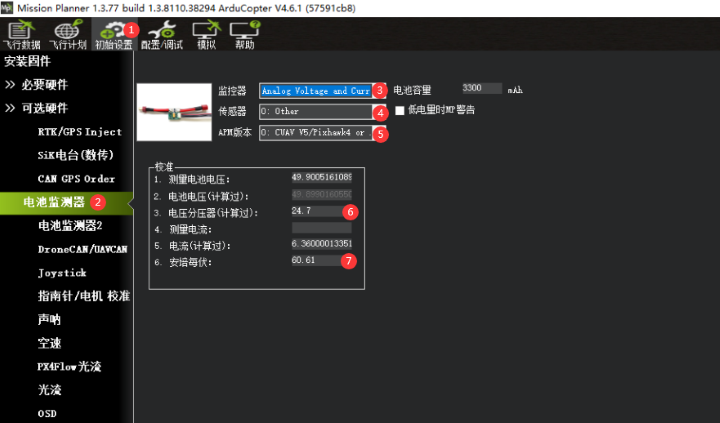

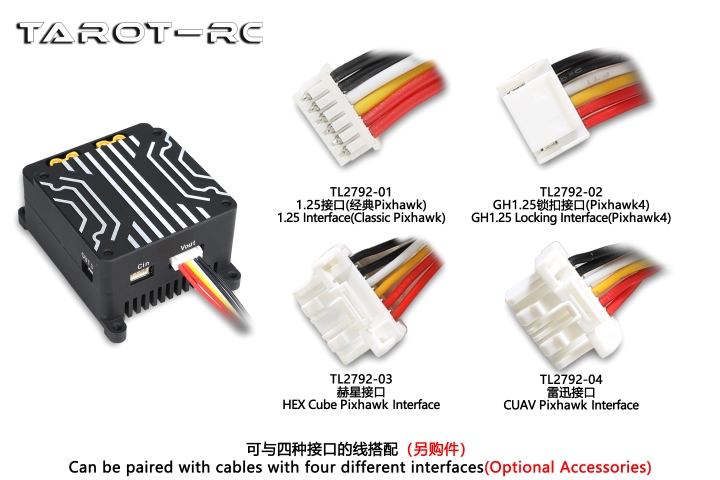

7. Supports integration with mainstream flight control systems via the Vout interface to enable voltage monitoring;

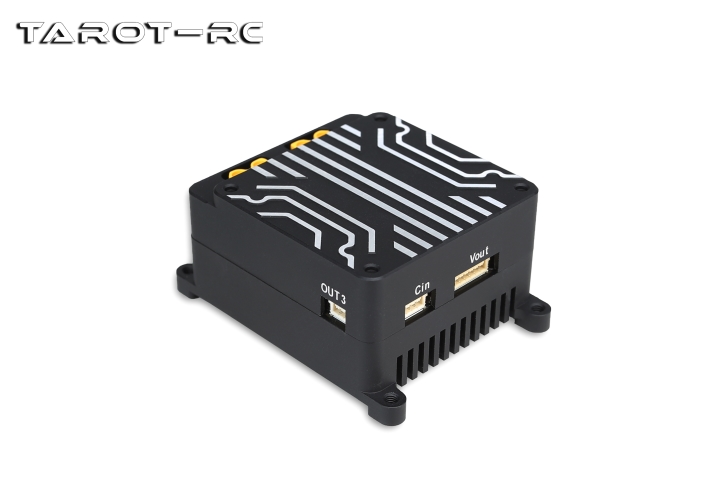

8. Supports external Hall sensor modules via the Cin interface to enable current monitoring;

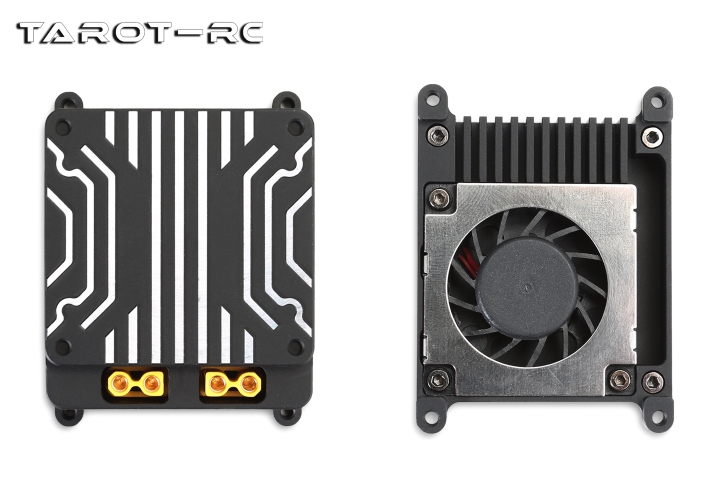

9. The housing is constructed from 6061-T6 aluminum alloy and fully CNC-machined, offering an aesthetically pleasing design with excellent passive heat dissipation;
10. Built-in integrated silent turbo fan provides active cooling, ensuring more stable module operation during high-power usage;
11.Built-in integrated Amass XT30 plug inputs and outputs eliminate exposed wires, ensuring a clean and elegant overall appearance for the module.
Note:
1. The OUT2 interface defaults to outputting 12.3V/10A at the factory. To achieve a secondary step-down to 5.3V/5A output, you must manually adjust the 12V/5V solder points on the internal circuit board and reconnect the wiring sequence for the change to take effect;
2. Carefully follow the operating manual when reconnecting the wiring sequence to avoid damaging the equipment.
In-depth expansion: If you have other specific functional needs and development, you can contact us to customize.
Packing List:S.UBEC Buck Module ×1
OUT3 Interface-12V Output Cable/GH1.25-2P ×1
Cup-Head Hex Socket Screw(M2.5*6mm) ×4
