Product Description:
·Tarot's factory ZYX-M flight control
·A number of new technologies in one, simplifying the complicated and tedious commissioning operation process
·Redefines flight and brings the essence of minimalist operation
·Through the interplay of advanced inertial guidance intelligent solving and navigation control algorithms
·Make the stability and maneuverability of the aircraft can be both

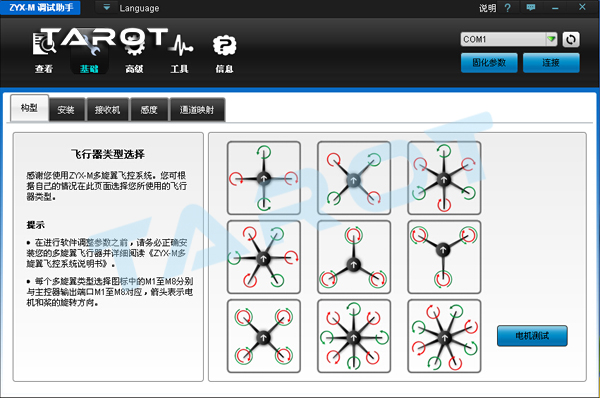

·You can set the pitch,roll,yaw and other characteristics of the drone in the tuning software according to your needs,so that you can design your own flight feeling as you like.
Product Features:
1.32-bit processor with powerful computing power.
2.Built-in sensor shock absorption,super anti-shock capability.
3.Full metal shell,providing comprehensive protection.
4.Head control exclusive interface,direct control of the new TAROT head

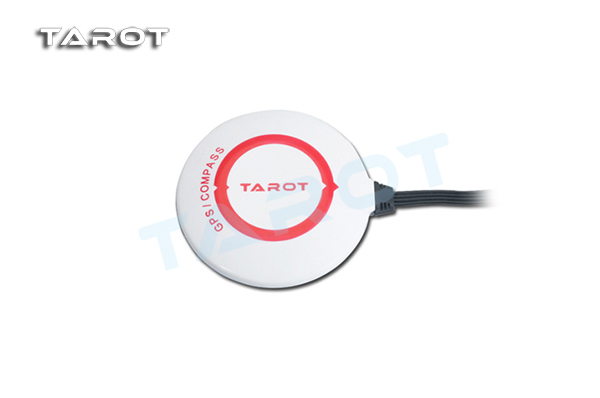

5.High-performance M8N-GPS module,high gain antenna,fast star search and ultra-accurate positioning.
6.12V/5V dual power supply output,support flight control and gimbal,map transmission power supply at the same time,integrated voltage detection,low voltage alarm.
7.LED indicator,simple and clear,control the status of the aircraft at any time and anywhere.
8.Support up to 9 types of aircraft types,plus 3 server output ports,more scalable.
9.Support SBUS,PWM,DSM satellite receivers.
10.Support runaway protection:when the remote control signal is lost,the aircraft can automatically return to the takeoff point for safe landing,and the switch of the remote control can be toggled to trigger automatic return to landing when the remote control signal is normal.
11.Support Intelligent Orientation Control(IOC)and Point of Interest Surround(POI).
12.Support intelligent landing gear function.
13.Support flight range and no-fly zone setting:in GPS speed mode,the aircraft will not fly out of the set protection range;in other modes,once it flies out of the protection range,it will immediately trigger the automatic return;
14.Support broken propeller protection(six-axis drone and above):when one of the motors or propellers can not work properly,the drone can fly normally or ensure a controlled attitude and will not fall.The drone will not fall.
Product Specifications:
Main control module ×1
GPS module ×1
PMU power module ×1
LED module ×1
USB debugging module ×1
Micro-USB cable ×1
3P DuPont cable ×8
|
