Product Description:

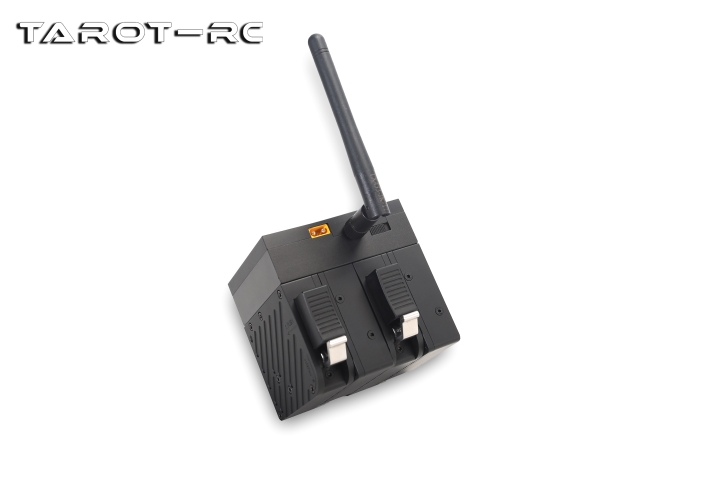

·Tarot's 4-stage thrower is equipped with a dedicated remote control in the 433mhz band, supporting two-way signaling feedback in both the released and closed states;
·CNC machined from 6063 aircraft aluminum and 304 stainless steel;
·The structure of the thrower adopts the design principle of mechanical leverage, which can reduce the output power required by the drive mechanism;
·Compact size of the throwing device and the articulation of the levers do not jam due to the weight of the load;
·The upper end of the thrower adopts the press-type quick release structure design, the thrower can be widely used in emergency rescue, material delivery and other work.
Product Features:
Simple operation, power on and ready to use;
Full metal body, simple and atmospheric appearance, sturdy and durable;
Product press type quick release structure design, quick release and quick install;

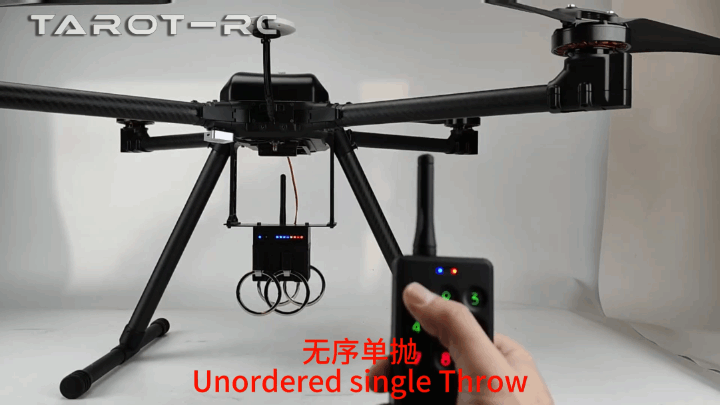

Support disorderly independent single throw, one key full throw;
Signal transceiver distance up to 5km;
Throwing and closing status with two-way signaling light feedback;
Maximum 20 kilograms for a single throw, 80 kilograms total throw load;
Product weight 600g.
Product Parameters:
/Sky end (thrower)
Input voltage: DC 10V-27V
Load weight: 20KG*4 sections, total 80KG max load
Signal distance: 5KM ± 10%
Control band: 433Mhz
Weight: 600g

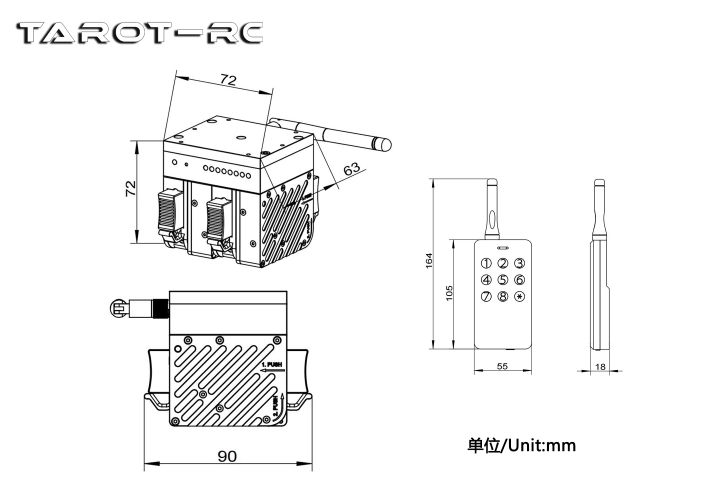

Size: 72*63*72
/Ground end (handheld remote control)
Input voltage: Built-in lithium battery 1200mAh
Charging method: Type-C, 5V/1A charging
Signal distance: 5KM ± 10%
Control band: 433Mhz
Weight: 117g
Size: 164**55*18
In-depth expansion: If you have other specific functional needs and development, you can contact us to customize.
Patent authorization:
The State Intellectual Property Office has granted WENZHOU FEIYUE AVIATION TECHNOLOGY CO.,LTD a patent for this product (Patent No. ZL 2022 2 1377634.5).

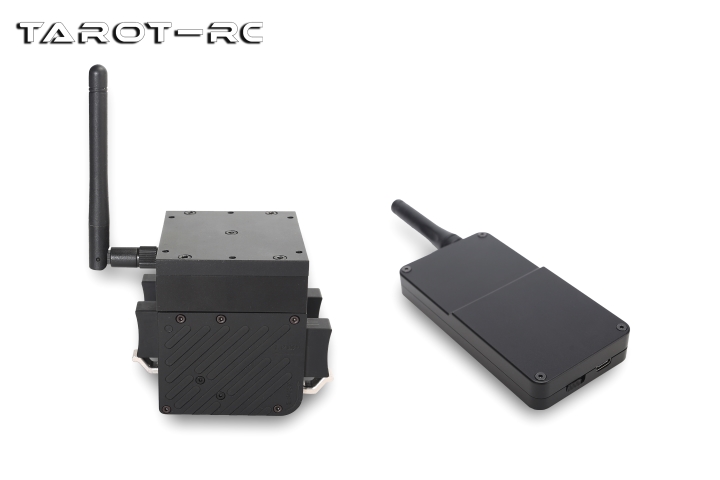

Product Specifications:
4-stage thrower ×1
Specialized remote control ×1
|
