Integrated from aluminum alloy and industry plastic, bringing light-weight and high-stability. T4-3D is the best choice for professional video and aerial photography enthusiasts.
Equipped with independent IMU module. Support point follow mode (PF) and the first person view (FPV) mode.
Support PC interface setting. Firmware upgradable.

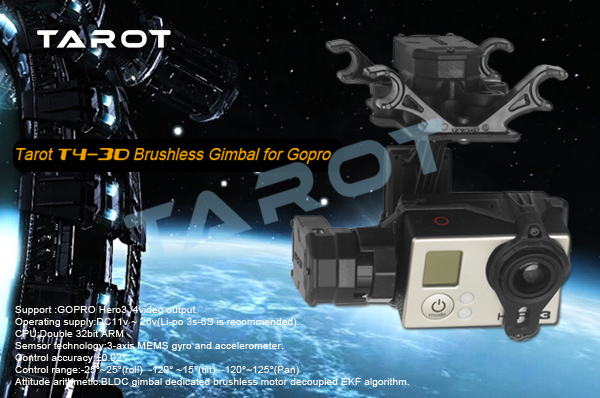

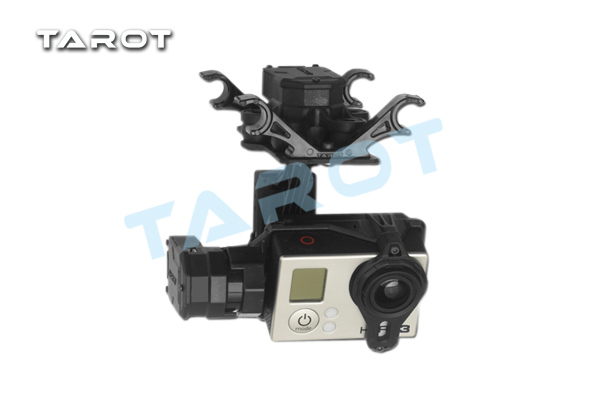

Tarot T4-3D 3-axis stabilized gimbal is designed for GOPRO HERO3 / HERO4 and similar cameras. Integrated from aluminum alloy and industry plastic, bringing light-weight and high-stability. T4-3D is the best choice for professional video and aerial photography enthusiasts.
Adopted the advanced gimbal control technology, Tarot T4-3D is equipped with independent IMU module. Support point follow mode (PF) and the first person view (FPV) mode. All the power and signal wires are embedded in the structure.
The innovative mechanical structure allows the operating speed controllable. The joystick movement is corresponding to axis speed; the bigger movement is, the faster axis speed will be.
Software Download:http://www.tarotrc.com/Download/Detail.aspx?Lang=en&Id=d2534b5f-bdb0-40c0-85bc-1042f5fc6d61
Features:
- PC interface - Windows XP/ VISTA/7/ 8 (32 or 64 bit)
- Point follow mode (PF)
- First-person view mode (FPV)
- Built-in independent IMU modules
- TAROT PTZ dedicated servo module
- AV output interface
- Wide range voltage input
- Support conventional receiver / S-Bus receiver / DSM receivers
Accessories:
- Support Camera: GOPRO HERO3 / HERO4 / other similar cameras
- Input Power: 2S ~ 6S LiPo battery
- Mechanical / electrical characteristics:
- Angle control accuracy: ± 0.02 °
- Maximum controllable speed: Pitch direction (TILT): ± 200 ° / s
- Controllable range of rotation: Pitch direction (TILT): -120 ° to + 15 °
- Operating Current: 30mA (@ 25V) 50mA (@ 12V)
- Stall Current: 350mA (@ 25V) 700mA (@ 12V)
- Working temperature: -20 ° C ~ 50 ° C
- Weight: 178g
- Size: 99mm × 88.5mm × 105.6mm
Specification:
- Tarot T4-3D 3-axis Brushless Gimbal x1
- Main controller module x1
- Connector cable x1
- 5V output, servo and video cable x1
- USB module x1
- Flight controller connector x1
- Box x1
