| Parameter name | Parameter value | Parameter name | Parameter value |
|---|

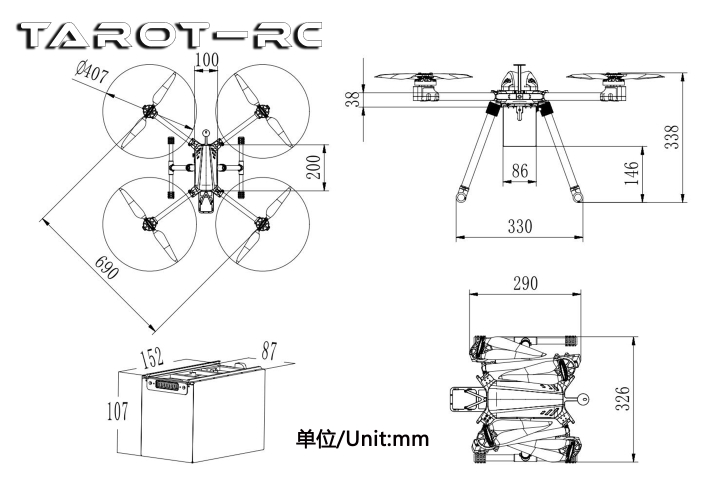

| Empty aircraft weight | 2.18kg | Wheelbase | 690mm | | Battery weigh | 2.14kg | Deployed wing length | 893mm | | Take-off weight | 4.32kg | Folding size | 290*326mm | | Max. wind resistance | Force 6 wind | Center compartment size | 200*100*38mm | | Flight distance | 4000m | Frame height | 338mm | | Flight altitude | 3000m | Battery Size | 152*107*87mm | | Flight mode | Self-stabilizing,altitude setting,stay-behind,one-key return,etc. | | | | Test environments | Sunny.25°C. Wind force 2 | | | | | Drone endurance length is related to the test environment and battery capacity | | | | Unloaded flight | 18A≈50min | | | | Loaded flight | (0.5kg/22A)≈40min，(1kg/25A)≈35min | | |
Product Description:

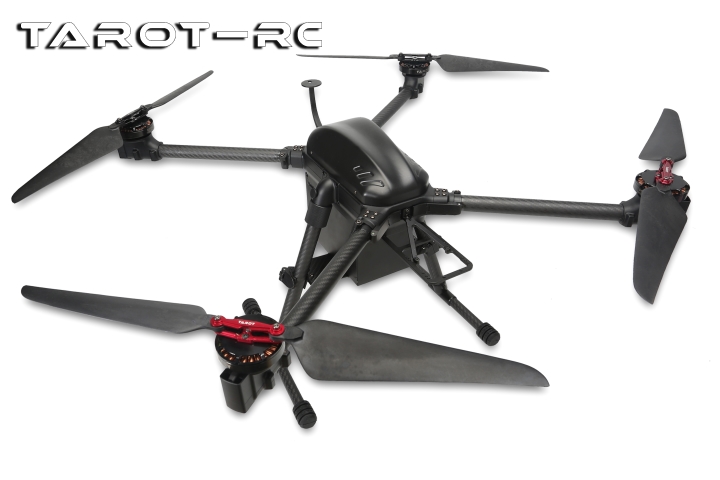

·Tarot's new Quadcopter is a multi-axis kit designed for professional aerial photography users;
·Kit includes frame,motor,ESC,props,quick release battery（Overseas version only has a battery compartment because the battery can't be shipped）;
·All-aluminum alloy one-piece center compartment;

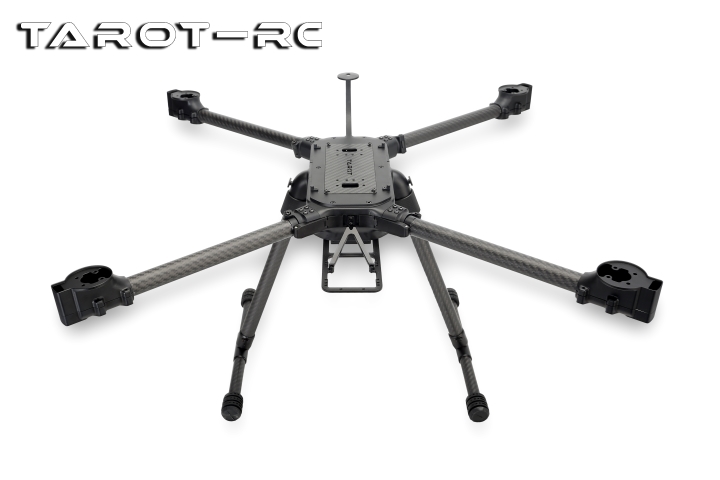

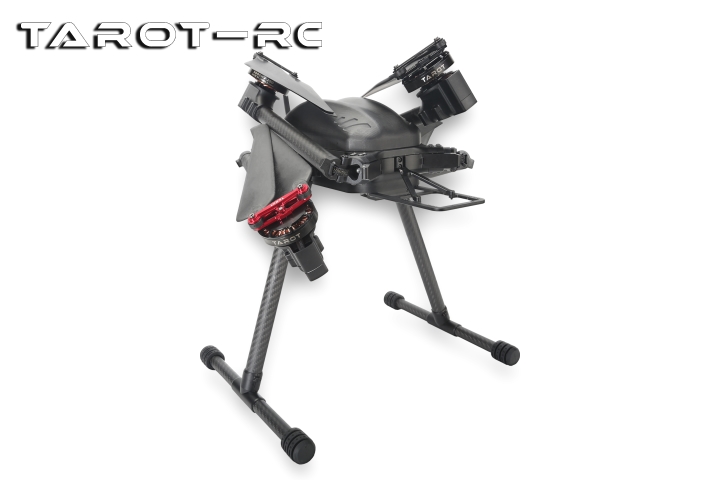

·Novel quick-detachable T-shaped landing gear, as well as the arm folded back and forth design;
·Overall lightweight, easy to carry and other features;
·Empty takeoff weight about 4.3KG, maximum extra load 1KG;
·Easy to carry DSLR and other aerial photography equipment, with 40 minutes of unloaded long endurance stay time;
·Configuration can be upgraded to increase endurance.
Caution:
The frame arm is constructed with an asymmetrical folding structure.

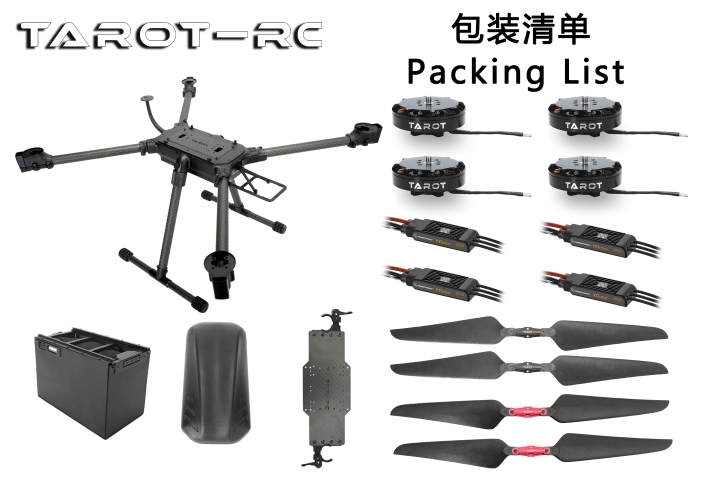

Shipping List：
M690 Frame ×1
Tarot 5006/290KV Motor ×4
Hobbywing Xrotor-Pro -40A ESC ×4
Tarot 1865 Folding Propeller ×4
Quick Release Battery Set ×1

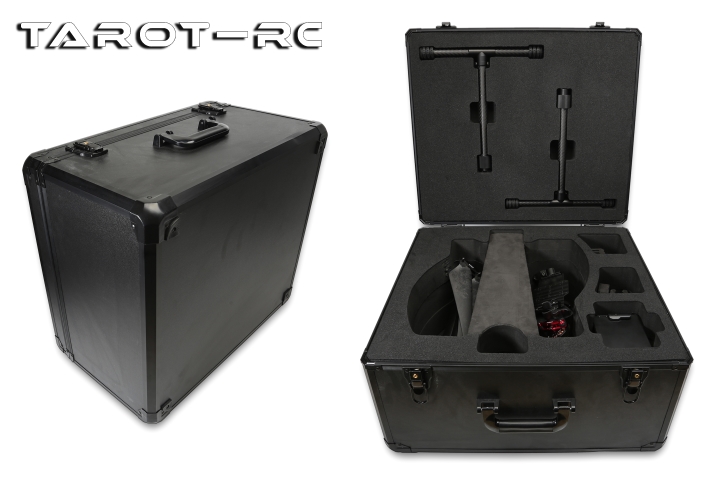

Portable aluminum box(49*36*47CM) ×1
|
