16MM Clamping Motor Mount/ Red TL68B26
Products

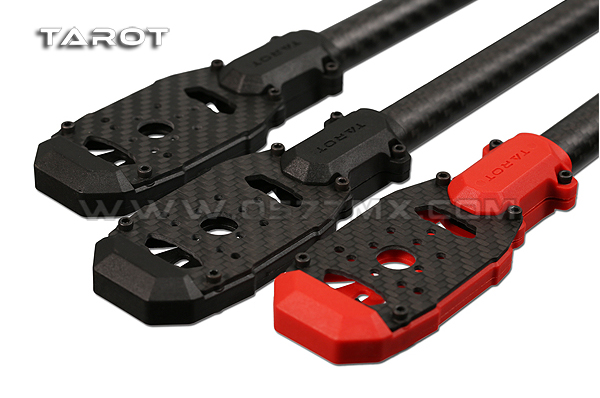

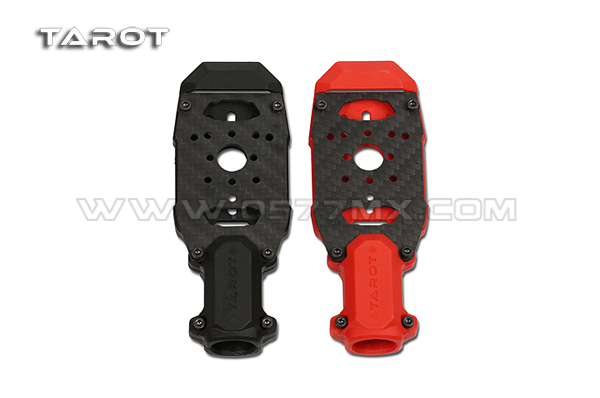

Product：16MM Clamping Motor Mount/ Red TL68B26

Category：Motor Mount/Quick Release/Fixing Parts

Price：35 RMB

Date：2013-08-20

Hits：13989


Product Description:

· Applicable to 16MM multicopters (TL65B01/TL65B02/TL68B01/TL68B02/TL68C00)

· Reinforced PC injection, with high strength.

· With brushless ESC installation hole on the back.

· Clamping design, easy to adjust the motor mount level.

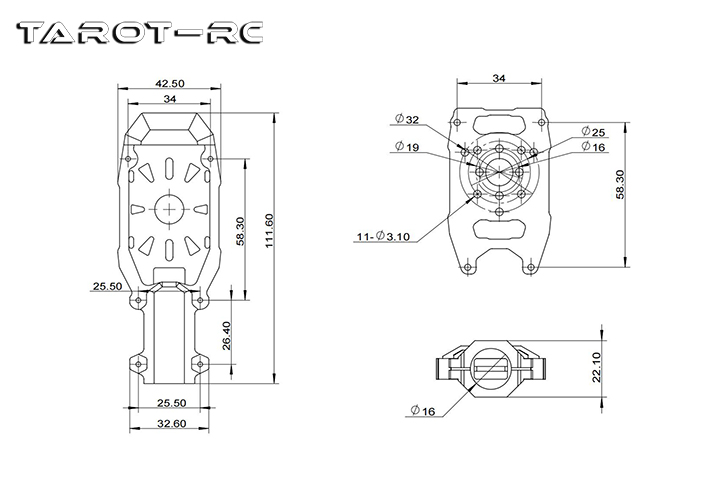

· Motor mounting pitch: 16MM/19MM/25MM/27MM equilateral triangle installation.

Specification:

· 16MM multicopter motor mount x1(111x22x43MM) 24.5G

· M1.6 Motor installation plate x1 (67x42MM)6.0G

· M2.5x10MM cup head hex crew x4

· M2.5x8 hex step screw x2
