Product Description:
·4008 Martin Long Endurance Brushless Motor for Long Endurance Multi-Rotor UAVs (Quadcopter up to 3.5kg overall weight, Hexacopter up to 5kg overall weight);
·Can be paired with Martin folding paddles to get the long endurance that drones need;
·The overall motor design has an extremely low centre of gravity for increased stability;
·Built-in high-efficiency active heat sink brings ultra-low temperature and effectively improves the energy conversion efficiency;
·Tarot's CNC milling and turning technology is used to manufacture this motor to a high standard, with a single motor weighing only 85 g (including the folding props holder).
·The Martin series of products belong to the new generation of Tarot's power packages, which have been tested and tuned over a long period of time in order to achieve low power consumption and high lift to meet the market's requirements for long endurance drones;
·The new design of the folding rotor mount is widely adaptable and universal for conventional propellers as well as the new Martin folding propeller;
·The base of the machine is designed with a high overhang to protect the coils;
·Mounting holes 19mm/25mm symmetrical hole spacing, compatible with the current market mainstream frame mounting, the appearance retains the consistency with the traditional motor;
·Continuing to inherit the Tarot brushless motor long life, high efficiency, low power consumption, low noise, stable control of the superior characteristics.

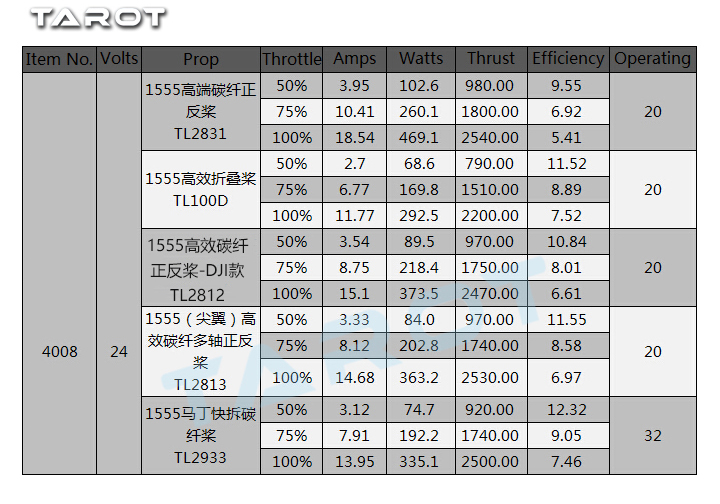

Product Parameters:
Support lithium section number: 6S
Propeller installation diameter: 10mm/12mm/34mm
Recommend Propeller: 15 inch
Stator diameter: 38mm
No load current: 0.53a 20V
Stator end thickness: 8.0
Stator end number: 18N
Motor pole number: 24P
Speed: 330KV ± 5%
Motor external diameter: 44.5mm
Axis diameter: 4mm
Motor height: 22mm
Maximum continuous current (1): 30A
Maximum continuous power: 497W
Motor weight: 85g (including the propeller holder)
Packing List:
4008 Martin long endurance brushless motor ×1
Metal folding paddle base (44*10*2.5mm) 2.0g ×1
Carbon fibre folding props seat clip (44*15*2.0mm) 0.85g ×1
Metal folding props base mounting screws: half-round head screws (M3*4mm) ×2
Rotor mounting screws: Sleeve Screws (M3*11.5mm) ×2
Motor mounting screws: Half round head screws (M3*8mm) ×3
Spare motor mounting screws: Cup head screws (M3*6mm) ×4
Teflon gasket(8*3*0.5mm) ×4
