Product Description:
·BAYCK Factory ELRS 915M NANO PRO Receiver;
·Receiver based on ExpressLRS open source system developed by ESP8285 + SX1276 + 500mWPA;
·The operating frequency can be configured as 868MHZ/915MHZ;
·Supports WIFI upgrade with 500mw return power;
·Can provide more than 50KM long-distance return transmission;
·Ultra-light and ultra-small 11mm*18mm size, easy to install;
·Very suitable for Race FPV and Remote FPV.
Product Parameters:
Model:ELRS 915M NANO PRO
Revenue Voltage:4.0-5.5V
Frequency:868MH Medium/915MHz (optional)
Chip:ESP8285+SX1276
Telemetry power:500mW
RF Connector:IPEX 1

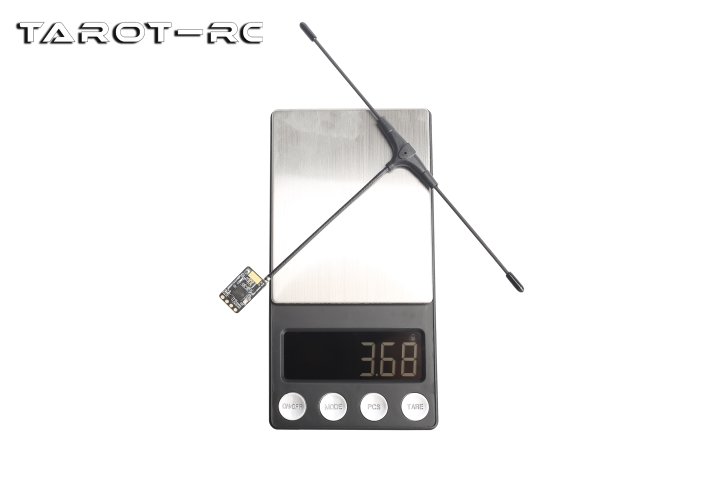

Weight:0.6g(without antenna)
Size:11mm*18mm
Instructions for use:

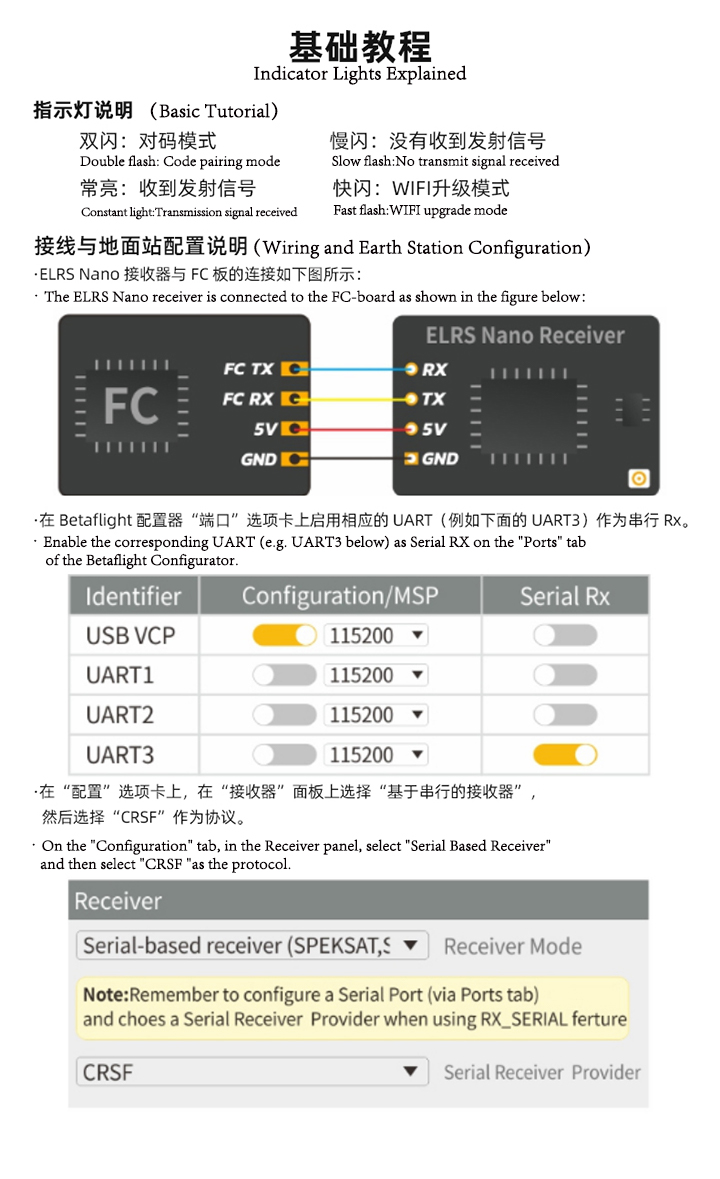

/LED Indicator Description:
Double flash:Code pairing mode
Slow flash:No transmit signal received
Constant light:Transmit signal received
Fast flash:WIFI upgrade mode
/Description of frequency pairing:
1. Power on and off the nano receiver 3 times (power on - power off - power on - power off - power on, within 1.5 seconds interval);
2. Ensure that the LED indicator cyclic fast flash 2 times (double flash), indicating that the receiver is in the state of code pairing;
3. Operate the BIND key of the remote control to the frequency, make sure it enters the binding state and sends out the binding signal;
4. The receiver LED indicator light is always on, the binding is successful.
/Firmware Description:
Firmware selection DIY 900MHz/DIY 900 RX ESP8285 SX1276
/Frequently Asked Questions Description:
Q: Can this receiver frequency pairing *** brand high frequency head?
A: ELRS is an open-source project,only need to be the use of ELRS protocol high-frequency head,regardless of the brand model,in order to meet the following three conditions can be mutual frequency pairing
1.The same frequency,the same 915MHz;
2.The firmware version is the same,for example,if the firmware of the HF head is version 2.5.0,the receiver firmware should also be version 2.5.0;
3.There is no frequency pairing password,or both have the same password set.
Q:The LED indicator of the receiver is always on,and it can not enter the frequency pairing state?
A:The interval between 3 times of power on/off is too long;or the TX RX port of some flight controllers has abnormality,which causes the receiver to enter the boot writing mode,then you need to use another TX RX port on the flight controller.
Q:The LED indicator of the receiver has been flashing fast and can't pairing frequency?
A:If the receiver does not enter into the frequency pairing state after power on,or if it has already been frequency pairing but the remote control is not turned on,resulting in no signal for 60 seconds,then it will automatically enter into the WIFI writing mode,and the indicator light will flash fast.
Q:How to enter the WIFI flashing mode to flash firmware for the receiver?
A:After powering on and off 3 times without operation,it will enter WIFI flashing mode in about 60 seconds, and the LED indicator will flash fast.
Product Specifications:
BAYCK 915M Nano pro Receiver ×1
T-type receiver Antenna ×1
Heat shrinkable tube ×1
30AWG silicone cable/4P ×1
2.54mm connector/4P ×2
