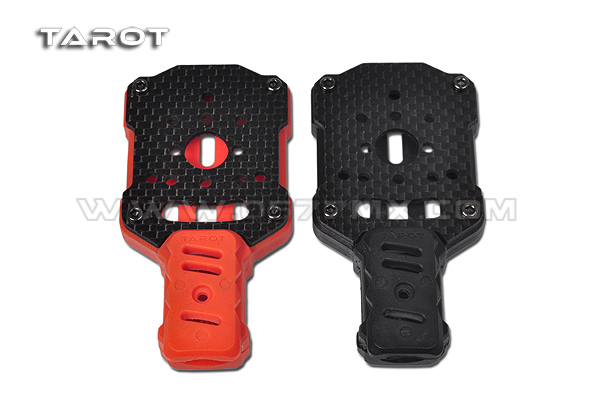

16MM Motor Mount for Multicopter/ Red TL68B19
Products

Product：16MM Motor Mount for Multicopter/ Red TL68B19

Category：650/680/690/750 Parts

Price：21 RMB

Date：2013-05-06

Hits：10823


Product Description:

· Applicable to multicopter (TL65B01/TL65B02/TL68B01/TL68B02) (16mm)

· High strength plastic applied

· Brushless ESC installation space added on the back, be able to be tied directly

· Dual-color design, which can be recognized easily in the air

· Motor installation space: 16MM/19MM/25MM/27MM equilateral triangle installation

 Note:

· Customers will need to drill holes on the CF tube, 2.11mm is applicable.

Specification:

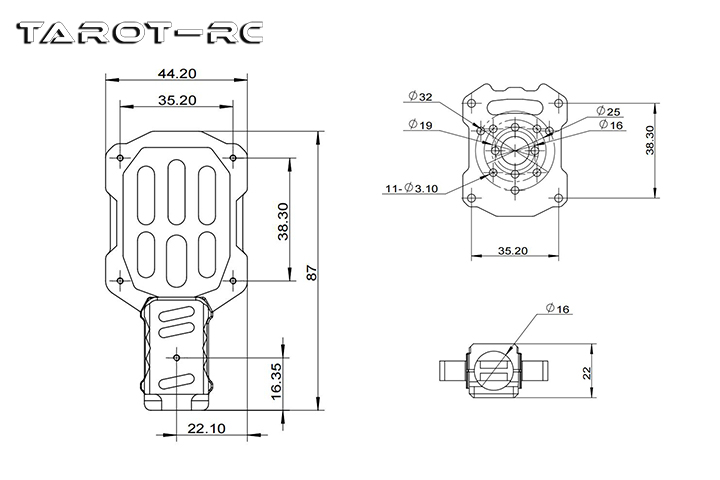

· 16MM motor mount for multicopter x1 (87x22x44MM)

· M2 half-carbon plate x1 (54x42.5)

· M2.5x20MM cup head hexagonal screw x1

· M2.5x6.5 hexagonal stepped screw x4
