Tarot 130 FPV Racing drone/set TL130H1
Products

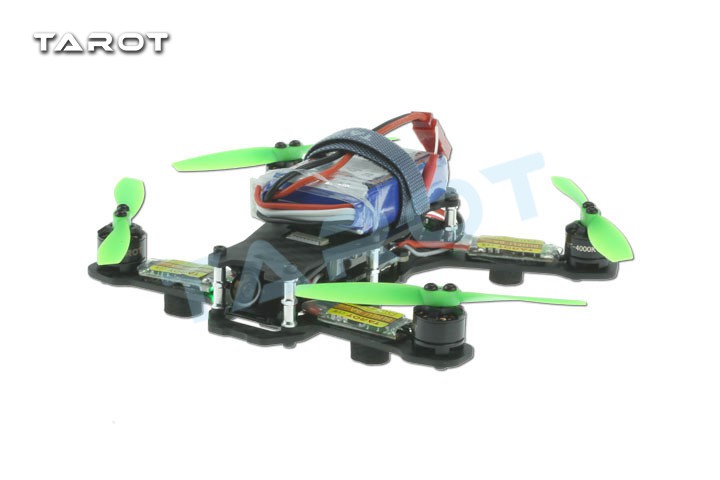

Product：Tarot 130 FPV Racing drone/set TL130H1

Category：Multi-copter Frame

Price：528 RMB

Date：2016-04-12

Hits：31534



Product manual:

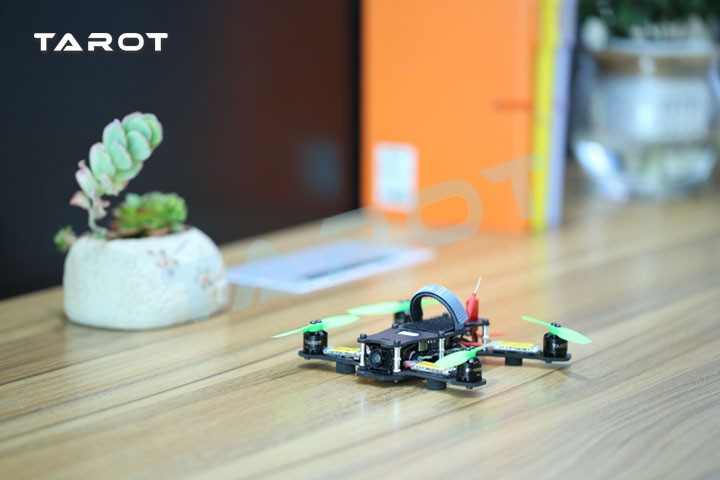

Tarot 130 FPV game machine level through an extremely delicate novel visual experience, bring through the extraordinary experience.The machine weighs only 138 grams including batteries, inherited the usual Tarot overall design criteria, so many wonderful to ingenuity can be found on this through the machine.

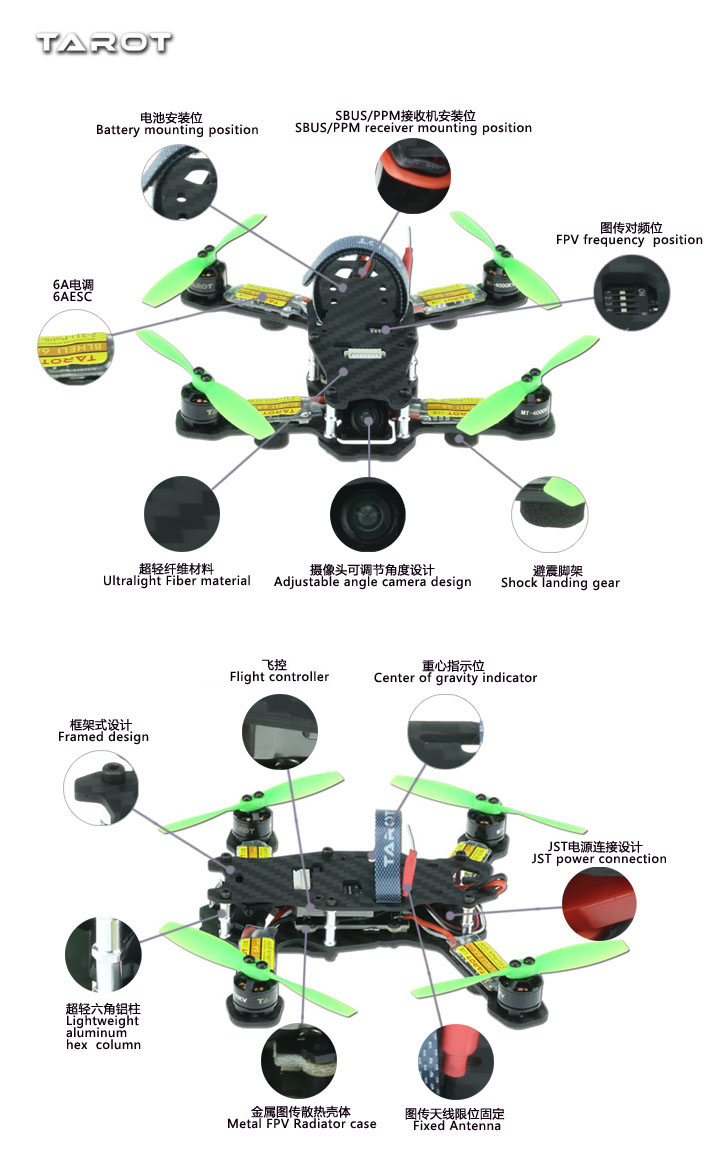

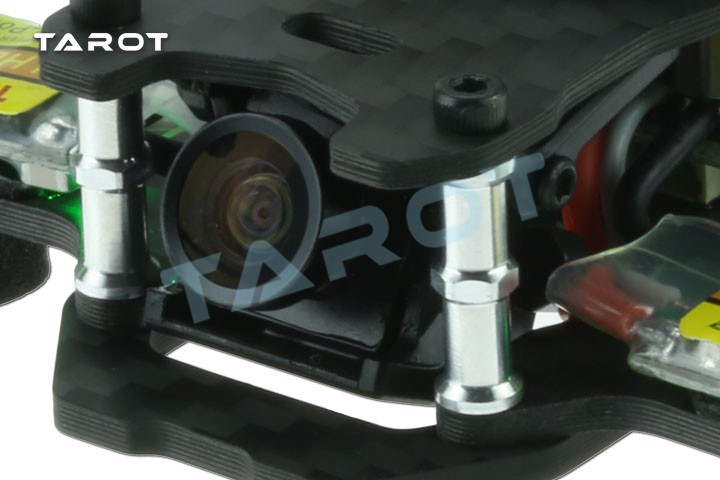

Miniature camera freely adjustable angle design
Strong Brushless Power

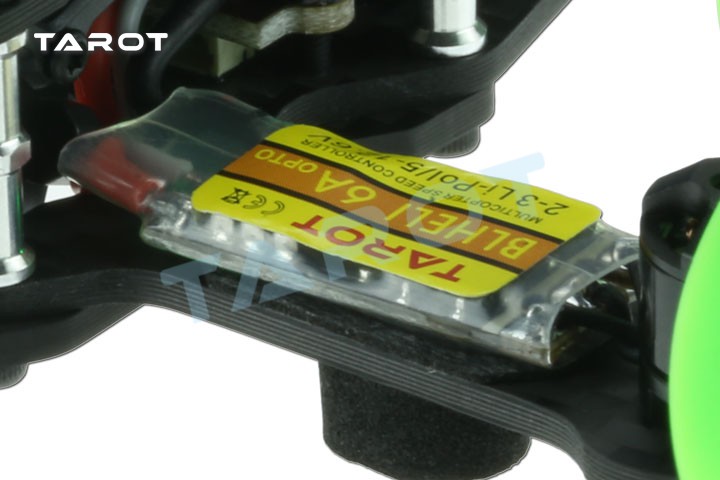

Subminiature 6A ESC
300MW miniatures Biography
Full carbon fiber frame design
Custom shock tripod
Reliable power connection
Lightweight aluminum hexagonal column
Miniature image transmission antenna
FIG CNC metal shell heat transfer
Ties slip design
Compact overall limit
Free flight mode switch
Flight control firmware factory default channel CH5 homeostatic control rack / manual mode
Homeostasis model: flight control LED red light, beep loudly
Manual mode: flight control LED red light off, beep sound
Related Item:

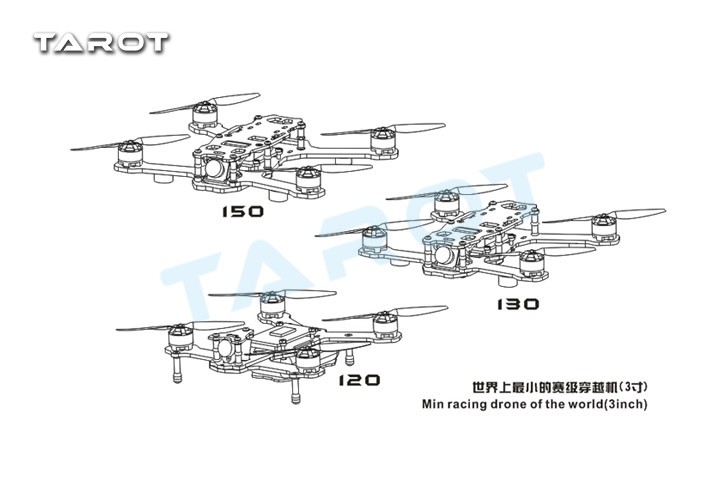

120 FPV  racing  drone TL120H1 / TL120H2 / TL120H3
130 FPV  racing drone  TL130H1 / TL130H2 / TL130H3
150 FPV  racing drone  TL150H1 / TL150H2 / TL150H3
180 FPV  racing drone  TL180H1 / TL180H2 / TL180H3
Recommended related equipment ID:
Race Level Flight Control: Standard TL300D
Brushless motor: standard MT1104 / TL150M1
Upgraded sold separately MT1106 (TL150M2 / TL150M3)
Brushless ESC: Standard 6A ESC / TL300G
Rotor Specifications: standard 3-inch paddle TL150S1 (8PCS)
Upgraded sold separately TL150S2
Camera: standard NTSC system TL300MN2 / PAL standard TL300M1 (1PCS)
5.8G300MW wireless image transmission transmitter: Standard TL300N2
5.8G Illustrated antenna: Standard TL300K4
Lithium-polymer battery: Optional (11.1V 35C 450MAH lithium polymer battery TL150A2)
SBUS or PPM receivers: Optional TL150F1
Product parameters:
Wheelbase: 135MM
Empty rack height / assembly height: 19MM / 28MM
Empty frame length / assembly Length: 111MM / 186MM
Empty rack width / assembly width: 123MM / 199MM
Set Weight: 85G
Specifications:

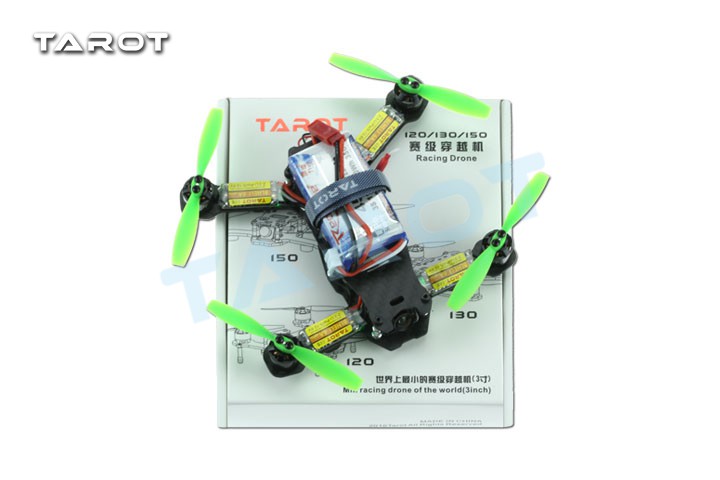

130 FPV racing drone / combo kit × 1
Battery Magic sticky × 1
Ties battery × 1
Instructions  × 1
