Peeper GS --Vehicle three screen Industrial ground station

Product：Peeper GS --Vehicle three screen Industrial ground station

Category：Ground Station/Engine Model

Price：68000 RMB

Date：2016-12-24

Hits：18505

TAROT offers three series and eight types of ground stations with its own patent rights, which may satisfy a range of individualized requirements and be matched and customized as per the demands of industrial clients.

Description ：

The “Peeper” unmanned aerial vehicle ground station system is applicable to high-end commercial and industrial unmanned aerial vehicle, and mobile control platforms used for beyond visual range (BVR) flight control design. Adopting intuitive, personalized interface design and real-time flight attitude feedback, the system allows the users to have sufficient understanding of flight state and equipment energy consumption, and experience BVR flight control by clicking the touch screen.

Configuration:

Each piece of equipment of the “Peeper” ground station adopts highly integrated modular design and each electric component or device is designed with protective layer and installed as per industrial assembling requirements, giving extremely high safety and reliability. American original PELICAN safety protective box is used for the cabinet while the panel is designed with mortise-tenon work, offering certain rain-proof function.

Technical parameters of the Peeper ground station:

1: Provided with 1 set of 15.6’’ industrial display and 2 sets of 8.4’’ industrial displays/high-brightness displays, visible under strong light.

2：Built-in computer consisting of Gigabyte Intel Core i3-5010u 2DDR3L S0-DIMN slot/Wifin_BT/HDD Tray GbE LAN/4 USB3.0 8G memory 120G SDD. MissionPlanner ground station software already installed in WIN10 operating system.

3: The panel adopts the integrated design, supporting 3-way high-definition output and 2-way high-definition input. Built-in high-definition acquisition box. Possible for input in 1920*1080 (60p) and video recording in 1920*1080 (30p) MPEG4 (MP4). External connection with 2T Mobile hard disk or 64G flash disk is possible.

4: Installation positions of high-definition image transmission and analog image transmission are reserved with built-in analog signal available for conversion into HDMI signal. Data transmission radio interface is also reserved available for 433MHZ 900MHZ 1.2G and 2.4G.

5: The panel is provided with R232 COM port, internet port and USB3.0 for convenient connection with external devices.

6: The system incorporates two vehicular antenna mounting bases, which may be used for image transmission and data transmission, effectively increasing the emission distance.

7: It visually shows such operating parameters as system voltage, current and power consumption. Also possible to set low-voltage alarm.

8: The system may operate under 220v input or 12v vehicular power supply. It has a built-in 11.1v 40AH high-capacity battery, allowing battery duration of 4-6hrs in outdoor environment.

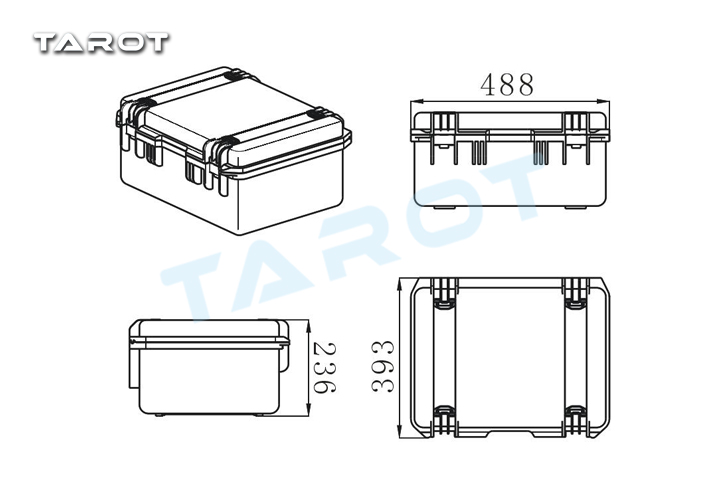

9: American original PELICAN safety protective box is adopted for the cabinet, featured by explosion-proof, waterproof and corrosion-proof characteristics.

Important notice: This ground station incorporates 10km high-definition image transmission function. Data transmission is optional. Refer to the following optional list.

Powerful modular design characteristics


The Peeper ground station adopts 15.6’’ industrial high-definition and high-brightness display for video display, making it visible under strong light.	The Peeper ground station adopts 2 sets of 8.4’’ industrial displays, each of which is of high -brightness display and visible under strong light.

The cabinet is provided with data transmission/image transmission vehicular antenna mounting bases.	It has built-in WIFI that supports internet port input and R232 COM port input,

Mains switch adopts protective/waterproof design, which supports a lot of power supply/charging modes.	A display system may show such operating parameters as voltage, current, power consumption and low-voltage alarm.

Multiple power supply modes available: supporting AC220v and 12v vehicular power supply/built-in battery usage.	It has a built-in 40AH high-capacity three-component iron-lithium battery and allows for battery duration of 6-8hrs in outdoor environment. It is featured by excellent over-charge/discharge resistance resistance, high energy density, good low-temperature property and good discharge property.

It has a built-in high-definition video acquisition box,video signal input supporting 1920*1080(60 p) and independent power switch for image transmission /data transmission.	It supports analog video signal output/MPEG4(MP4) 1920*1080 (30 p) recording/ external connection with 2T mobile hard disk or 64G flash disk.

It supports 3-way high-definition output, 2-way high-definition input, and video signal switching on No.1 display.	Charging with 2-6S may be possible for external battery. High-voltage battery is supported. Built-in battery may be also used to charge external battery.

It has a built-in 2-way charger, which may, in case of 220V power supply or vehicular 12V power supply, charge the cabinet internally and the airplane externally.	It is provided with a humanized damp flip design, thus realizing convenient manipulation.

It is provided with automatic temperature control and heat dissipation system.	It is provided with UAV full HD digital image transmission system which is featured by strong interference resistance, clearer and more stable images, short delay, and longer transmission distance. According to actual measurement, it may realize a flight transmission distance of more than 9.8km, the longest one we have realized when compared.with a lot of equivalent products in the industry.

TAROT offers three series and eight types of ground stations with its own patent rights, which may satisfy a range of individualized requirements and be matched and customized as per the demands of industrial clients.	American original PELICAN safety protective box is adopted as the cabinet and featured by rigidity, water resistance, impact resistance, corrosion resistance and high/low temperature resistance.
