Product Description:
· Designed for UAV Aerial Photography. Perfect for light capacity, long time, and large range job; for example,
RC monitoring, aerial researching, measure sketching, farm developing… etc.
· Applicable to 5DII, RED EPIC, C300, FS700.
· Toray 3K carbon fiber applied, CNC processed. Light weight, high strength, vibration resistant.
· Battery mount is detachable, prevent crash damage.
· Metal clamp is 40 dovetail designed, with a strong clamping force.
· Foldable boom is applied with self-tightening thread structure.
· Light weight motor mount is CNC processed, double color appearance, brings strong visual focus.
· Standard mount rod diameter is 12MM. Applicable to gimbals with center distance 165MM.
· Standard equipment: Foldable GPS mount, 8 in 1 aggregator, and multi-copter foldable landing gear.
·
Difference between TL18T00 and TL15T00:
Mounting distance from 155MM to 165MM. Wider center plate. Difference between shafts is longer, applicable to 17-18’’ propellers and 5008/340KV motor [TL96020].
Specification:
Boom diameter: 25MM
· Distance between axis diameter: 1270MM
· Kit diameter: 1320MM
· Height: 420CM
· Center plate: 301x209x2.5MM
· Motor mounting pitch:16MM/ 19MM/ 25MM/ 27MM equilateral triangle installation.
· Propeller specification: 17-18’’ propeller
· Brushless Motor: 5008/340KV, TL96020
· Battery: 6S 22.2V 15000-20000MHA
· Brushless ESC: 35-40A
· Mounting boom diameter: 12MM
· Weight with full accessories: 11KG
· Kit Weight: 2.0KG
Specification:
· T15/T18 Battery Mount TL15T01 x2
· T15/T18 Aluminum Bolt TL15T02 x2
· T15/T18 Metal Reinforcement Plate TL15T03 x1
· T18 UAV center plate TL18T03 x1
· Pure Carbon Boom for T18 TL18T01 x4
· Pure Carbon Boom for T18 TL18T02 x4
· T15/T18 Foldable Oct-copter Mount TL15T06 x2
· Foldable Mount for GPS Antenna TL15T08 x1
· T810/T960 Foldable Landing Gear Set TL96013 x1
· Multi-copter Spacing Shim / 4 pieces TL96021 x4
· T810/T960 Gimbal Hanging Parts TL96014 x1
· 8 in 1 Aggregator TL100B14 x1
· Metal Clamping Holder for Multi-copter TL9605 x8
· 25MM Motor Mount for Multi-copter/ Orange TL9602 x2
· 25MM Motor Mount for Multi-copter/ Black TL9603 x6
· Titanium contact file x1
· Water sticker x8
· Color sticker x2
· Velcro sticker x2
· Instruction x1
· Spare screw pack x1
· Color Box x1
Related items :M4 Aluminum Alloy Screw TL9606
M3 gimbal screw nut/ Gold TL100A02-02
25MM Carbon Fiber Single Battery Mount Set TL80B04
25MM Carbon Fiber Dual Battery Mount Set TL80B05
T810/T960 Dual Battery Mount TL96018
Battery Shock Absorbing Pad TL2770

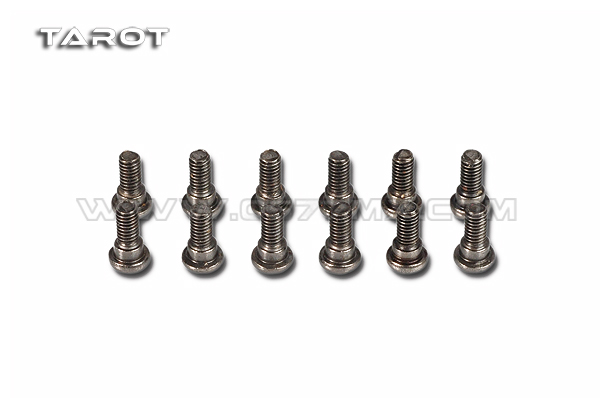

Special screws for FY450/FY550 TL2778-01
