This is a leading industry standard indoor through machine, is also the first flip-over motor through the machine. The use of flip-up motor lift lift, clever combination of tripod and rotor protection ring, very suitable for indoor flight, school teaching applications. Simply plug in the SBUS or PPM receiver to enjoy heartbeat-accelerated indoor traversal. Everything else we have already done, Tarot design standards, change, and lead the small fashion through the machine trend.
Product manual:
The Tarot 140 FPV interior traversing machine delivers an extraordinary cross-cutting experience with an extremely refined and innovative visual experience. Test the airplane before takeoff. The machine contains only the battery weighs 156 grams, inherited Tarot customary overall design standards, so many clever ideas can be found in this machine through the machine.

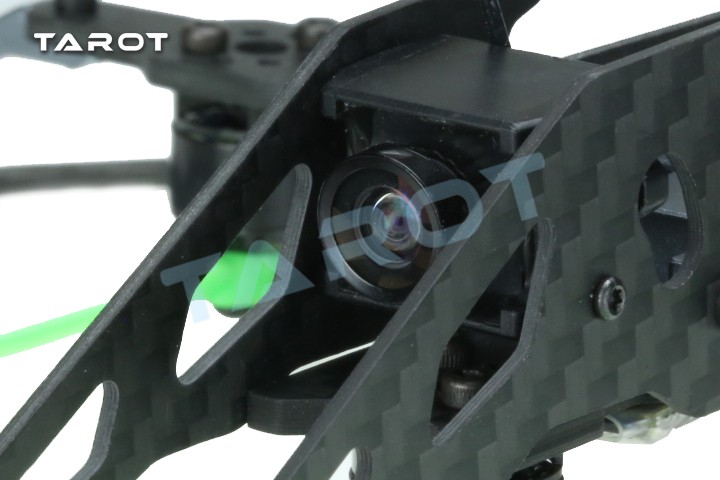

High - definition camera free adjustable angle design
1106 strong brushless power
Subminiature 6A ESC
300MW micro graph transmission
Design of all carbon fiber frame
Design of rotor protection ring
Reliable power connection
Ultra-light hexagonal aluminum column
Miniature Antenna
Metal CNC transmission shell cooling
Anti - slip design of cable ties
Extremely compact overall
Flight mode free to switch
Flight Control Firmware Factory default CH5 Control Rack Auto / Manual mode
Self-stabilization mode: Fly-control LED red light is always on and buzzing sound
Manual mode: The flight control LED is off and the buzzer beeps
Related Products :
120 FPV race level through the machine TL120H1 / TL120H2 / TL120H3
130 FPV race level through the machine TL130H1 / TL130H2 / TL130H3
140 FPV race level through the machine TL140H1 / TL140H2 / TL140H3
150 FPV race level through the machine TL150H1 / TL150H2 / TL150H3
180 FPV race level through the machine TL180H1 / TL180H2 / TL180H3
Related equipment recommendation number:
Level flight control: standard TL300D
Brushless motor: standard MT1106 / TL150M1
Upgraded version to be purchased MT1106 (TL150M2 / TL150M3)
Brushless ESC: Standard 6A ESC / TL300G
Rotor Specifications: Standard 3-inch paddle TL150S1 (8PCS)
Upgraded version to be purchased separately TL150S2
Camera: standard NTSC standard TL300MN2 / PAL standard TL300M1 (1PCS)
5.8G300MW wireless map transmission transmitter: standard TL300N2
5.8G Figure transmission antenna: standard TL300K4
Lithium polymer battery: Optional (11.1V 45C 550MAH lithium polymer battery TL150A1)
SBUS or PPM receiver: purchase TL150F1 / TL150F2 / TL150F3
Product parameters:
Wheelbase: 140MM
Empty rack height / assembly height: 51.5MM / 55MM
Empty rack length / assembly length: 238MM / 238MM
Empty rack width / assembly width: 233MM / 233MM
Set of machine weight: 106G
Product Specifications:
140 FPV race level through the machine / kit × 1
Battery magic stick × 1
Battery cable tie × 1
Chinese and English manual × 1
