Tarot Mini 300 FPV kit TL300A
Products

Product：Tarot Mini 300 FPV kit TL300A

Category：Multi-copter Frame

Price：68 RMB

Date：2015-07-22

Hits：20053

Product Description ：

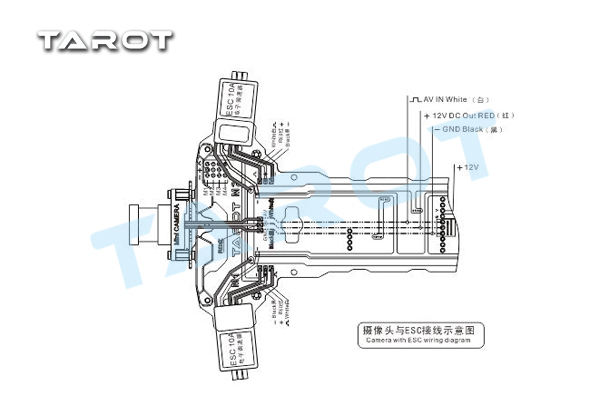

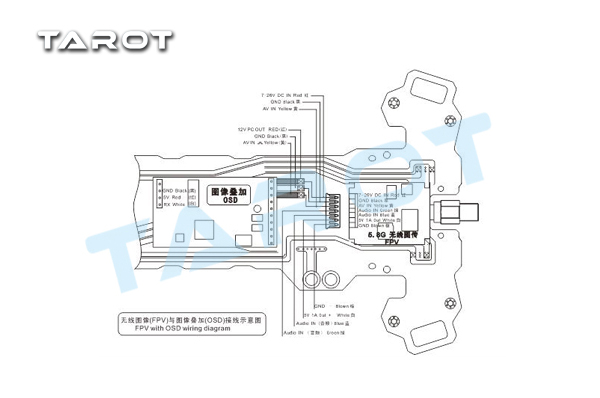

  • Tarot mini 300 FPV Kit is easy to assemble. The integrated PCB can be directly connected to electric accessories (camera, OSD, power, ESC, 5.8G TX, GPS, and antenna)
  • 2.1MM carbon fiber applied, the structure is simple.
  • 450 landing gear applied
  • Light weight, long operation time.

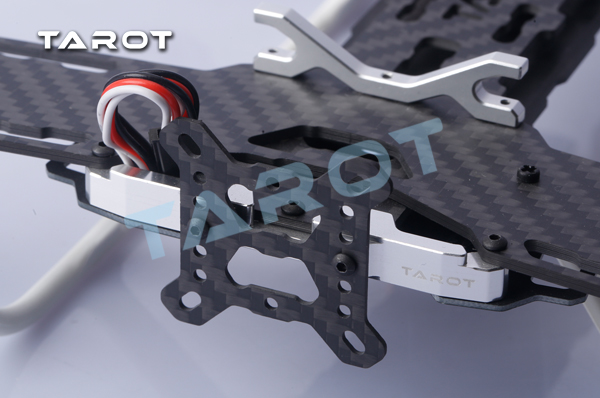

  • The lens board is with multiple holes, middle installation designed.
    Suggest lens: TL300M
Specifications ：

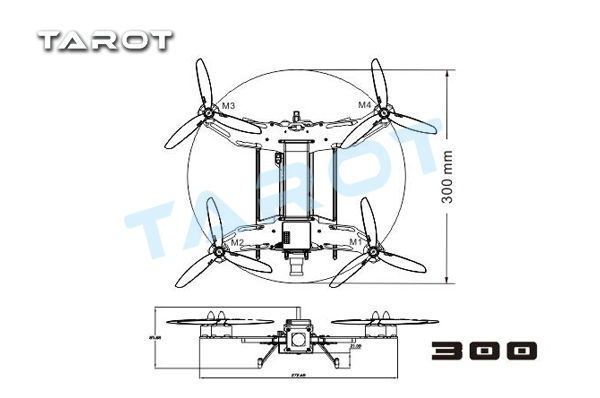

  • Wheel Base: 300MM
  • Neat height/ Kit Height: 43MM/ 85.8MM
  • Bottom height: 21.8MM
  • Neat Weight/ Takeoff Weight: 135G/450G (with 2200mHa battery)
Package Contents ：
  • 2.0 middle CF board x1 (180x33x2.0MM) 12.5G
  • 2.0 front CF board x1 (240x70x2.0MM) 20.5G
  • 2.0 rear CF board x1 (240x68x2.0MM) 17.9G
  • 1.0 front CF board x1 (159x33x2.0MM) 1.3G
  • PCB x1 (181x106x19.5MM) 28G
  • Landing gear x1 (175x108x43MM) 25G

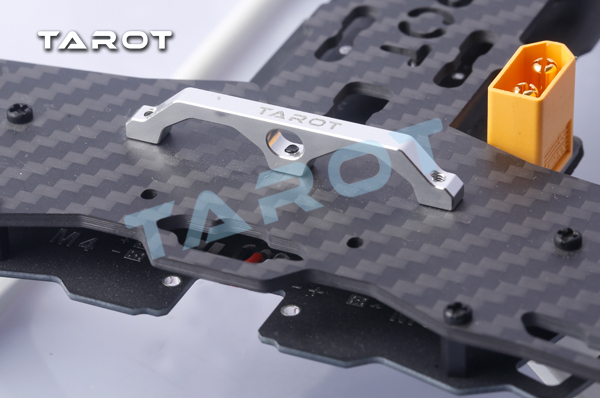

  • Front metal support x1 (73x10x8MM) 5G
  • M2x4MM hex screw 0.2G x7
  • Up metal support x2 (48.5x4x8MM) 1.7G
  • M2x12MM hex screw 0.3G x6
  • Flight controller double sided tape x1 (35x35x1.5M) 0.5G
  • Battery strap x1
  • Battery Velcro strap x1
  • Instruction manual x1
