| Recommended Configurations |
|---|
| Parameter name | Parameter value | Parameter name | Parameter value |
|---|

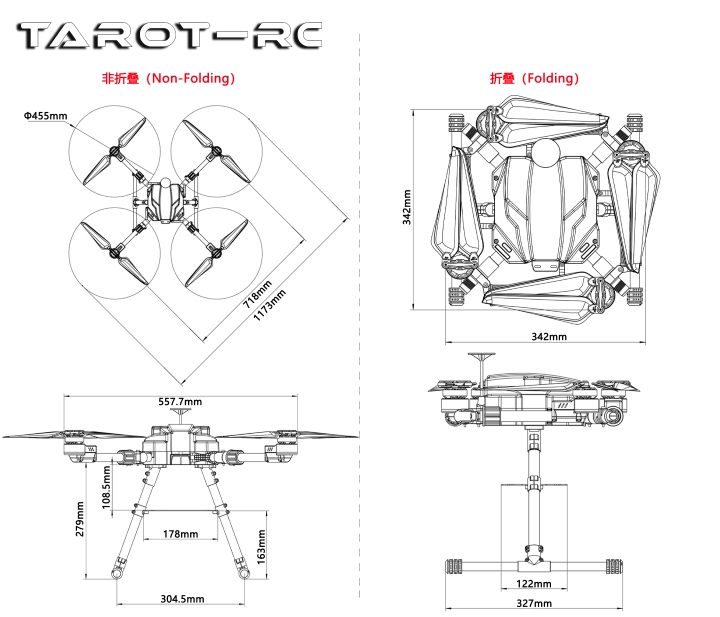

| Empty aircraft weight | 2.44kg | Wheelbase | 718mm | | Battery weight | 1.66kg(12000mAh) | Deployed wing length | 1173mm | | Take-off weight | 3.1kg | Folding size | 342*342mm | | Max. wind resistance | Force 6 wind | Frame height | 279mm | | Flight distance | 4000m |
|
| | Flight altitude | 3000m |
|
| | Flight mode | Self-stabilizing,altitude setting,stay-behind,one-key return,etc. |
|
| | Test environments | Sunny.28°C. Wind force 2 |
|
|
| Drone endurance length is related to the test environment and battery capacity |
|
| | Unloaded flight | 16.7A≈40min |
|
| | Loaded flight | (0.5kg/20A)≈35min,(1kg/22.6A)≈30min,(2kg/30.2A)≈22min,(3kg/37.1A)≈18min |
|
|

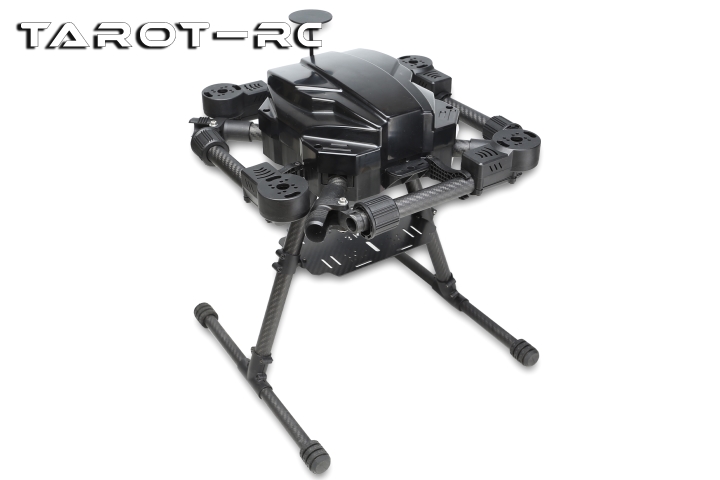

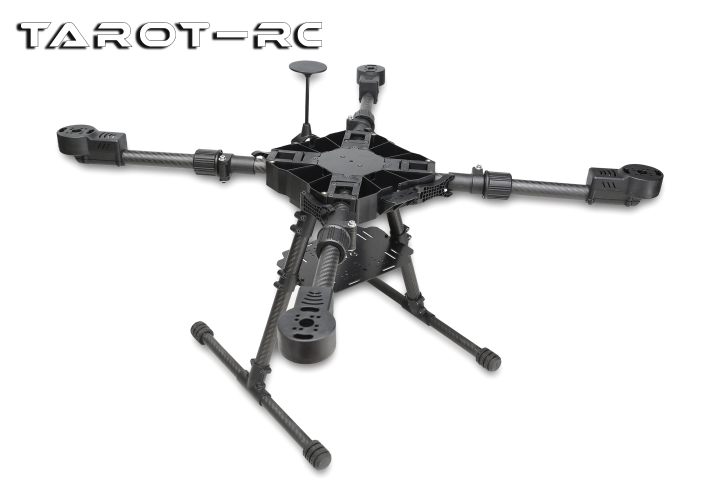

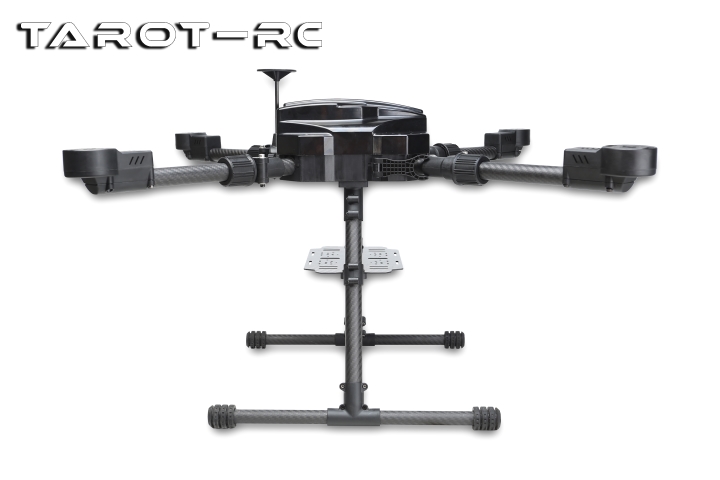

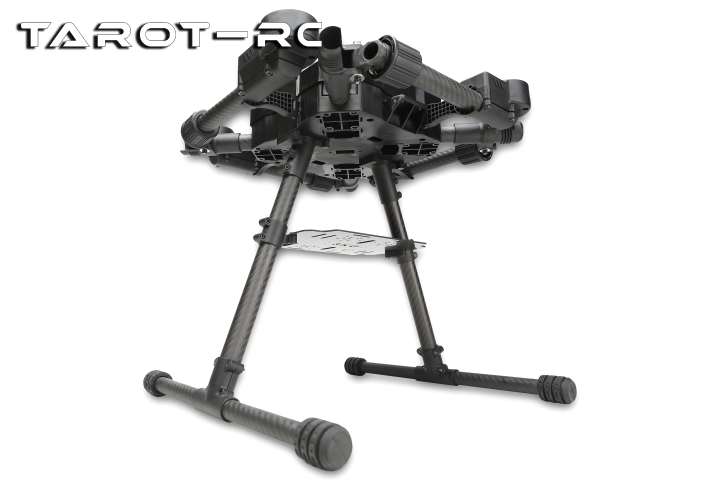

· Tarot's newest foldable quadcopter frame;
· With a wheelbase of 718 mm, it can accommodate commonly available equipment such as camera mounts, microphones, and throwers and other equipment;
· Suitable for applications such as surveillance, remote sensing, surveying, aerial reconnaissance, fire monitoring, search and rescue, cable inspection, and farm monitoring—where high mobility is required and the equipment load is relatively light.
Product Features:

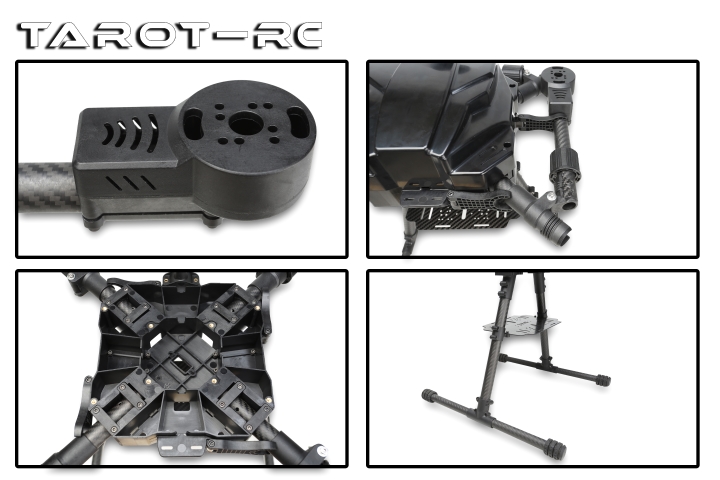

1.Integrated frame body with a wrap-around folding design;
2.The body is made of imported composite materials through integrated injection molding, with a 30% carbon fiber content, ensuring a sturdy and stable structure;

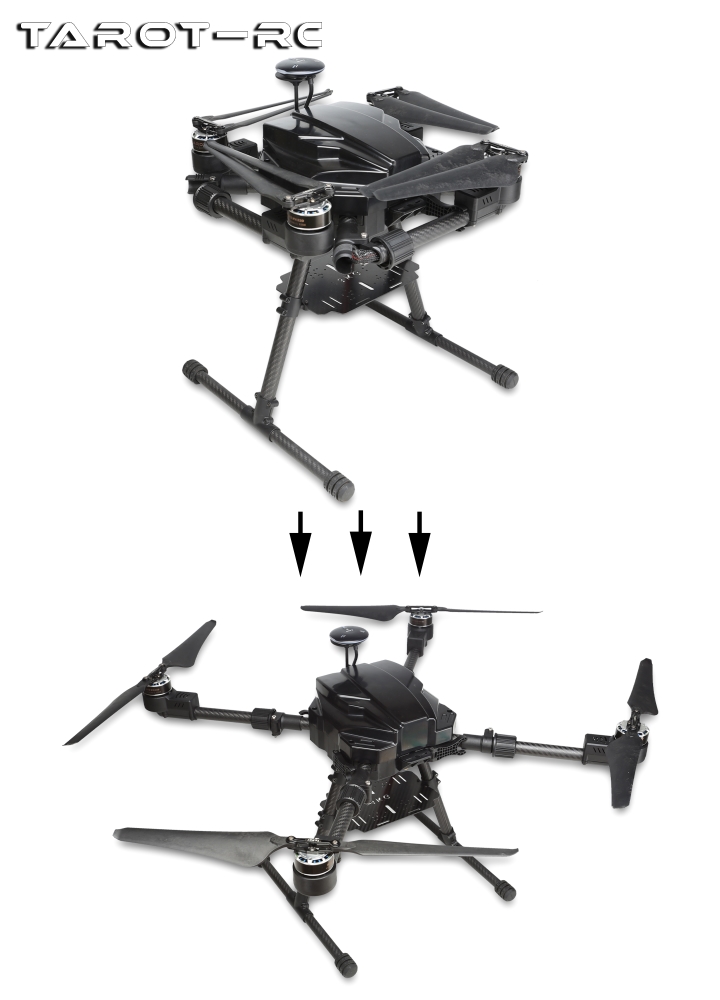

3.Wrap-around folding mechanism with 360-degree counterclockwise folding arms, effectively maximizing space utilization;
4.Swivel arm latches that securely lock the arms in place during both deployment and folding;
5.Integrated motor mount with a wraparound design accommodates ESCs within specified dimensions, giving the entire aircraft a sleek and elegant appearance;
6.Large mounting platform provides ample space for equipment installation;
7.User-friendly cable exit port design seamlessly integrates with Tarot distribution boards and effectively supports the installation of mainstream electronic modules available on the market;
8.Recommended for use with the Tarot High-Performance Power Kit (Tarot 4012/320KV motor + Hobbywing XRotor-Pro-40A ESC),Tested flight time: 40 minutes;
9.Designed for a payload of 3 KG, suitable for a wide range of flight applications;
10. Empty frame weight(without props,motor,ESC and others): 1380 g.
Packaging List:
Quadcopter/Integrated/Frame (with canopy) ×1
|
