25MM Motor Mount Multicopter/ Orange TL9602
Products

Product：25MM Motor Mount Multicopter/ Orange TL9602

Category：T-Series Parts

Price：55 RMB

Date：2013-05-04

Hits：13175




Product Description:


· It applies 6061T6 aluminum alloy CNC processed

· Applicable to hex or octo-copter (T810/T960/TL100B01) (25mm)

· ESC installation space added

· ESC CF plate applies Japan TORAY 3K pure carbon fiber CNC processed, 2.0mm thickness matte carbon fiber plate has ultra-high quality

· Dual-color design, which can be recognized easily in the air

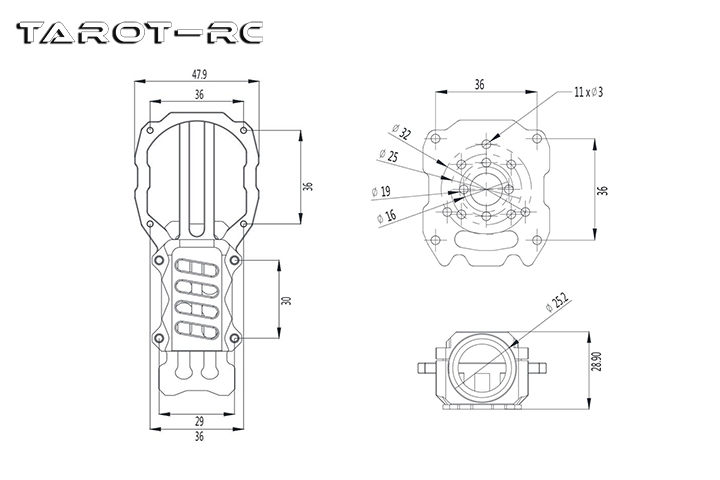

· Motor installation space: 16MM/19MM/25MM/27MM equilateral triangle installation


Specification:


· Pure carbon fiber plate for ESC x1 (62x29.3x1.3MM)

· Pure carbon fiber adapter for motor x1 (52x45x2.0MM)

· 25MM metal motor mount x1 (92.5x48x27MM)

· M3x10MM cup head hexagonal collar screw x4

· M2.5x6.5 hexagonal stepped screw x4

· M2x6MM flat hexagonal screw x4
