Product Descriptions:
· Japan TORAY 3K carbon fiber plate and 3K hollow carbon fiber tube (not 3K fiberglass tube) applied
· CNC processed, high quality design
· Total weight is only 600g

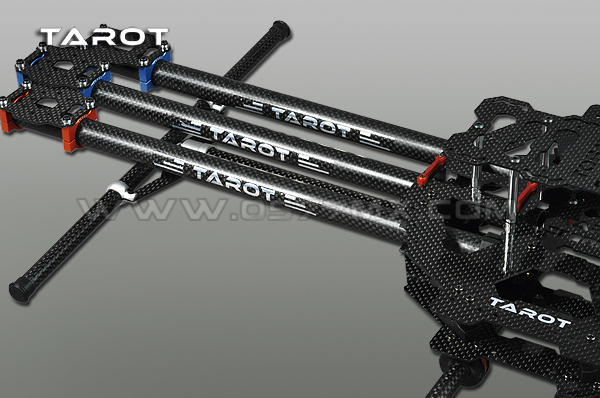

· Fully foldable design, convenient to carry
· Especially for monitor, remote sensing, survey and mapping, aerial investigation, fire observation, life exploration, cable patrol,
and farm monitoring applications which has moving objects but no heavy loading
· Please see specification for further details
Specifications:
· Small-size water sticker ×1 set
· Middle-size water sticker ×2 set
· Instruction manual ×1

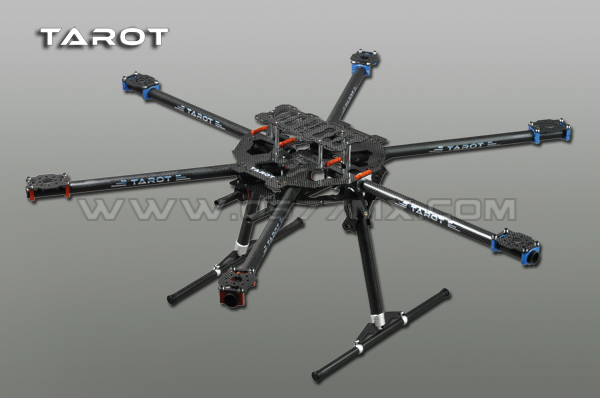

· FY680 Foldable hex-copter frame set/ carbon fiber ×1 set
Configuration:
· Radial distance from motor to motor 680MM, 300W light disk motor, 10-13 inches
· Carbon fiber propeller and brushless motor:
· 2212/2216/2814 series, 880-1000KV 2000MHA 3-4S battery, 20¡Ð30A brushless ESC with loading such as small digital camera or small DSLR,
applicable to small range aerial photography application (photo, video)
· With ground station, pilots can comply more light loading application.
Related product number :
· FY680 Foldable Hex-copter Carbon fieber Main Plate TL68B03
· FY680 16MM Carbon Tube Foldable Holder Set TL68B04
· FY680 Metal 16MM tube Clamp TL68B05
· FY680 CF Battery Mount Plate/Central Plate TL68B06
· FY680 M3H5 Aluminum Hexagonal Bolt TL68B07
· FY680 16MM Motor Mount TL68B08
· FY680 16MM 3K Matte Carbon Tube TL68B09
· FY680 M10 Metal Damper Ruber Mount TL68B10

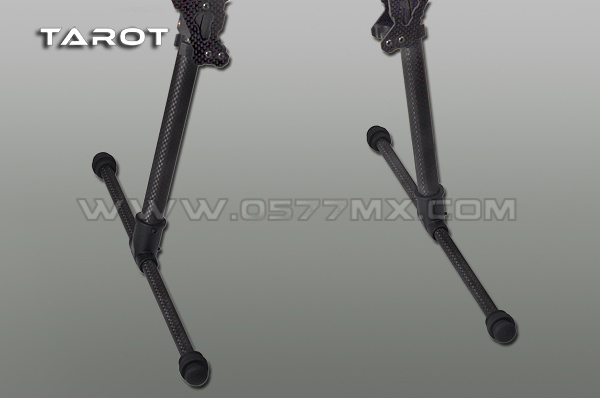

· FY680 Hex-copter Foldable Gear TL68B11
· Special screw for FY450/FY550 TL2778-01
· Weight : 600G
