25MM Plastic Motor Mount/Black TL96027-01
Products

Product：25MM Plastic Motor Mount/Black TL96027-01

Category：Motor Mount/Quick Release/Fixing Parts

Price：39 RMB

Date：2014-07-09

Hits：12406


Product Description ：
  • Applicable to 25MM diameter boom and multi-copter modification (T810/ T960/ TL100B01).
  • Reinforced PC injection processed.
  • With brushless ESC installation hole on the back.
  • Clamp design, easy to adjust motor mount level.
  • Motor installation:16MM/ 19MM/ 25MM/ 27MM equilateral triangle installation
Specification:

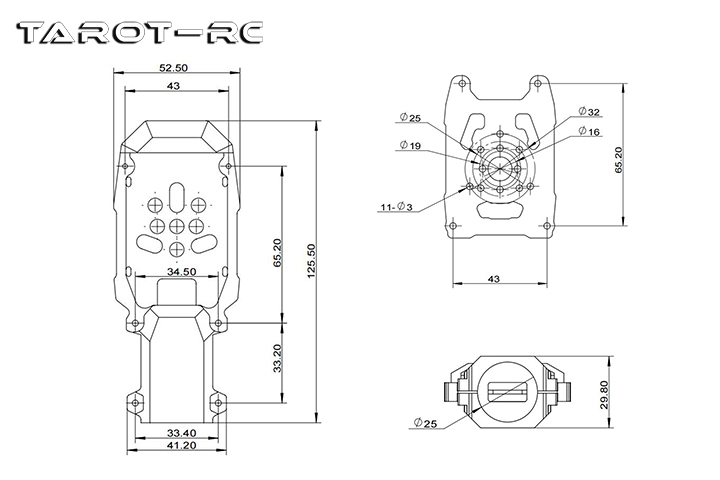

  • 25MM Multi-copter Motor Mount x1 (125x30x52.5MM) 43G
  • T2.0 Motor Installation Plate x1(74.5x51MM) 11G
  • M3.0 x 10MM Cup Head Hex Screw 0.9G x4
  • M2.5 x 10MM Cup Head Hex Stepped Screw 0.8G x4
