| Recommended Configurations |
|---|
| Parameter name | Parameter value | Parameter name | Parameter value |
|---|

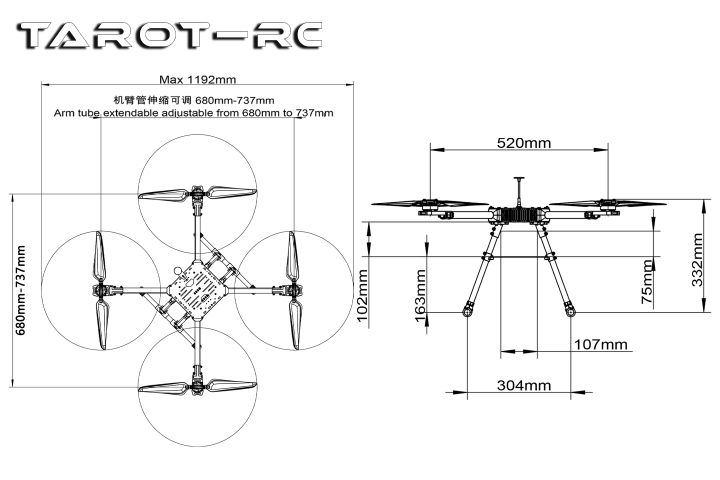

| Empty aircraft weight | 1.91kg | Wheelbase | 737mm | | Battery weight | 1.66kg(12000mAh) | Deployed wing length | 1192mm | | Take-off weight | 3.57kg | Center plate size | 170*170mm | | Max. wind resistance | Force 6 wind | Frame height | 332mm | | Flight distance | 4000m | | | | Flight altitude | 3000m | | | | Flight mode | Self-stabilizing,altitude setting,stay-behind,one-key return,etc. | | | | Test environments | Sunny.35°C. Wind force 2 | | | | | Drone endurance length is related to the test environment and battery capacity | | | | Unloaded flight | 13.7A≈42min | | | | Loaded flight | (0.5kg/17.3A)≈35min,(1kg/20.3A)≈29min,(1.5kg/24.3A)≈25min,(2kg/28.1A)≈21min | | |
Product Description:
·Tarot's newest 680-wheelbase quadcopter, the Plastic model;
·Adopting integrated non-folding structure design, the whole frame is reliable and sturdy;
·Suitable for surveillance, remote sensing, mapping, aerial reconnaissance, fire observation, life exploration, cable patrol, farm monitoring, and other applications that require high mobility and low equipment load.
Product Features:
1. Non-folding integrated frame structure design, the whole machine is firm and sturdy;
2. The frame body, arm, landing gear full carbon fiber material;
3. The arm joints and landing gear joints are made of imported composite material injection molding, which is very sturdy and durable;
4. Large space in the center plate can easily install various electronic devices;
5. Magnesium alloy motor base, ultra-light material;
6. Dual landing gear, 16 to 16 T-type structure design, and fully embraced battery compartment, the overall rigidity of the strong and stable;
7. The weight of the frame is only 845g.

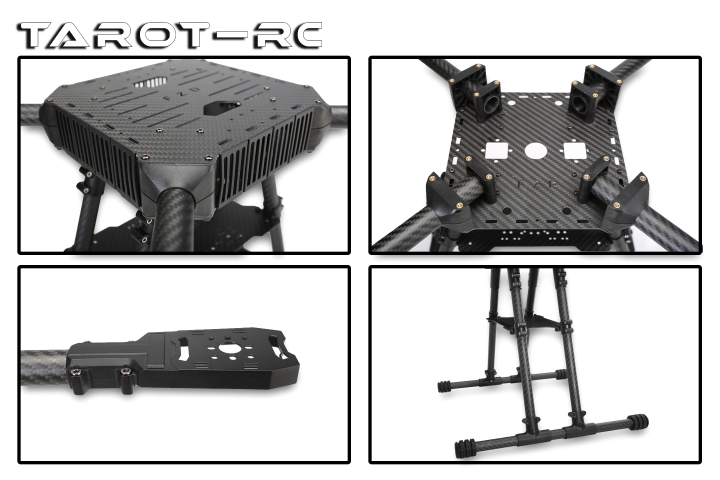

Frame Material:
Magnesium alloy: motor mount
Carbon fiber: upper and lower center plates, arms, landing gear
Plastic parts: arm mount, landing gear mount, battery plate mount, fence, landing gear adapter
Packing List:
TL680B Frame ×1
|
