Product Description:Tarot's high performance SBUS/PPM/PWM signal conversion module supports the interconversion of the remote control's S.BUS signal, PPM signal, and the PWM signal of the common receiver.
Product Parameters:Input voltage:DC 3.3-20V
Working current:15mA
Dimension:21*21mm
Weight:4.1g
Product Features:1.Support 8 channels input/output;
2. Input signals are automatically recognized, no need to switch manually, plug and play;
-2.1. When any one of the 8 PWM channels inputs a PWM signal, the corresponding PPM channel outputs a PPM signal and the SBUS channel outputs a SBUS signal;
-2.2. When SBUS channel inputs SBUS signal, the corresponding 1-8 channels output PWM signal, and PPM channel outputs PPM signal;
-2.3. When PPM channel inputs PPM signal, corresponding 1-8 channels output PWM signal, SBUS channel outputs SBUS signal;
3.LED status indicator three-color display, concise and clear;
4. Wide voltage design, job high support 20V input;
5. The use of 32-bit microcontroller, in terms of performance stability and response speed far beyond the ordinary 8-bit microcontroller.

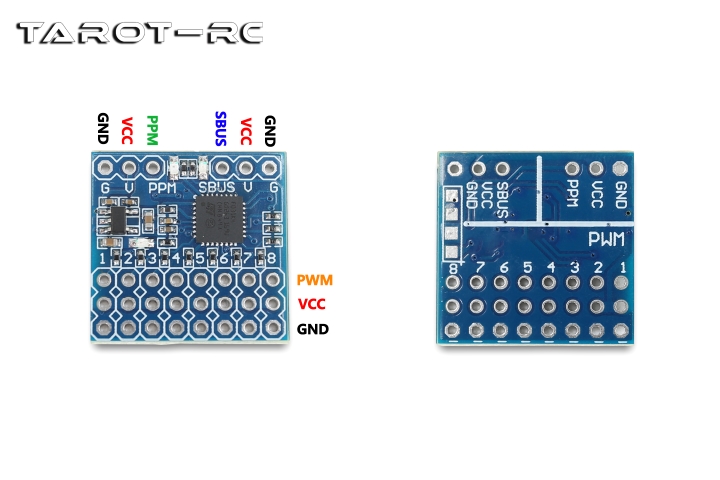

Description of Channels and Indicators:Channels 1-8 are PWM signal input or output channels;
SBUS channels are SBUS signal input or output channels;
PPM channel is PPM signal input or output channel;
When there is no signal input, the three indicator lights are normal bright (PPM green, SBUS blue, PWM red);
Input signal indicator light is normal bright, output signal indicator light is blinking.
For example: when PPM signal is input, the corresponding indicator of PPM is normal bright in green, and the indicators of PWM red and SBUS blue signal are blinking.

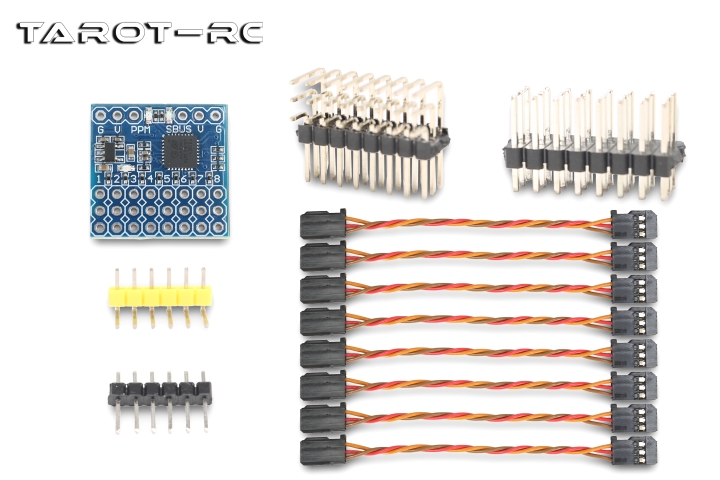

Packing List:SPP conversion module ×1
8P*2.54MM*3 pin straight needle ×1
8P*2.54MM*3 pin needles ×1
6P*2.54MM pin needles ×1
6P*2.54MM pin straight needle ×1
3P-Double Dupont Cable(115mm) ×8
