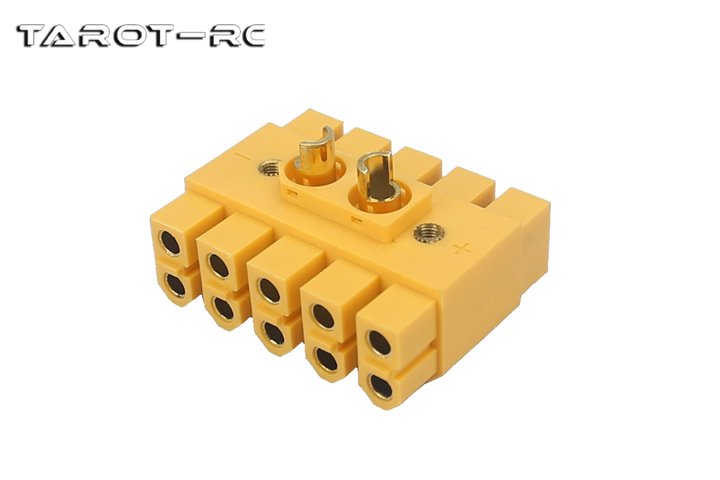

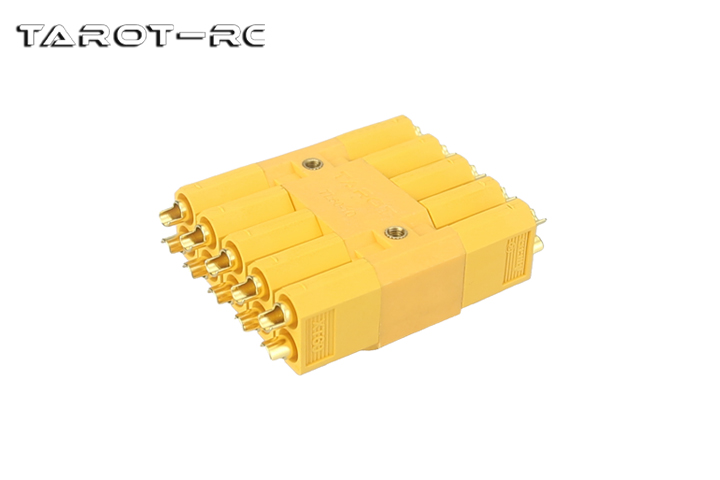

Product Description:·One-out-ten power distribution modules from Tarot
·Specially developed for medium and large drones,supporting any type of drones within 10 channels of line output
·The shell adopts the injection molding integrated design

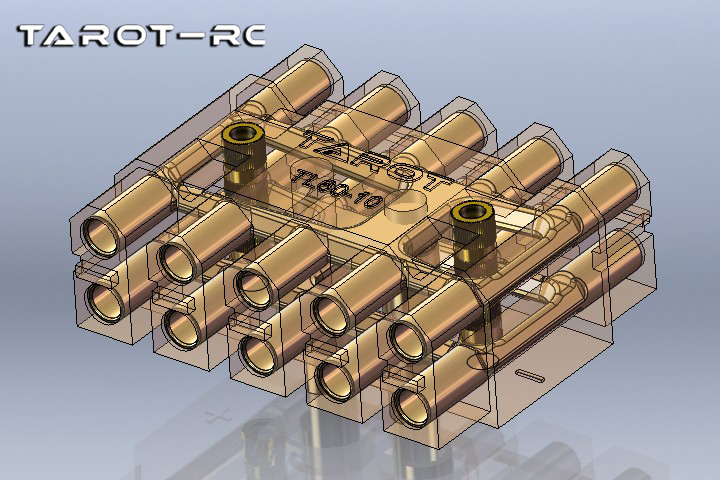

·The internal wiring is made of solid copper(gold-plated surface)with a one-piece structure, and the current resistance can reach 200A
Note:
1.Due to the internal solid all-copper build,will cause serious heat absorption,it is recommended to use 100W soldering iron soldering main power!
2.Before powering on for the first time, you need to test the positive and negative power supply and voltage output by yourself to ensure that it is completely normal before connecting it to the output device, the company is not responsible for any damage caused by this product!

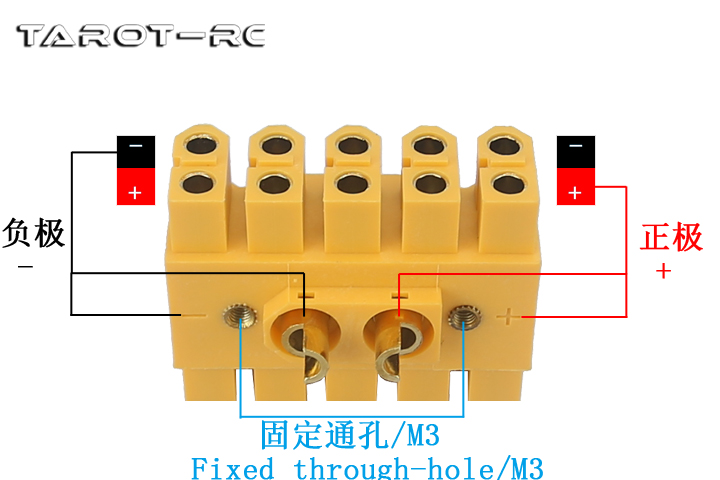

Product Features:1.Internal wiring(positive/negative)each way using solid copper one-piece structure.
2.Gold-plated plug contact surface design.
3.Shell pressure molding injection molding design,beautiful and upscale.
4.No heat-shrinkable tube,sheath one-step installation in place,saving time and effort.
5.Flat welding port with a sheath with a barrier layer,both to prevent short circuit and facilitate welding.
6.UL94V-0 flame retardant grade,the safety factor is greatly enhanced.
7.Current resistance up to 200A.

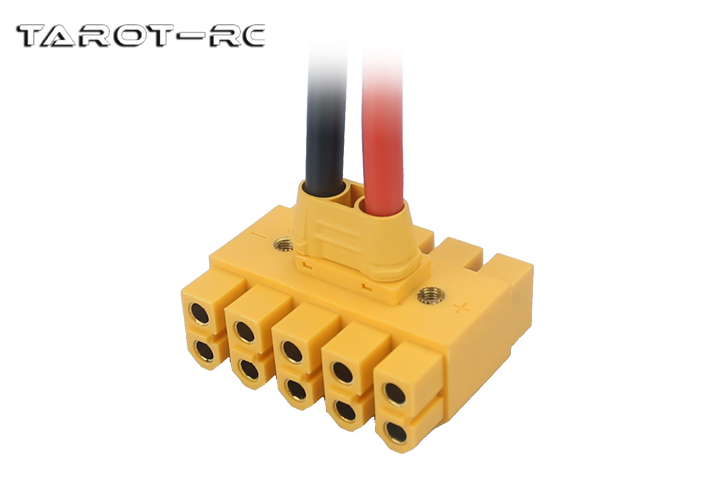

8.Seamlessly compatible with XT60 docking male connector.
Patent Authorization:The State Intellectual Property Office has granted Wenzhou Tarot Aviation Technology Co., Ltd.The patent right of this product (
Patent No.:ZL2021 2 2008729.1),any unit or individual without the holder's authorized permission,manufacturing,imitation,use,sales of this product will face patent infringement lawsuits.
Product Specifications:One-out-ten power distribution modules TL60-10(42.5g)×1
90 series sheath(0.8g)×1

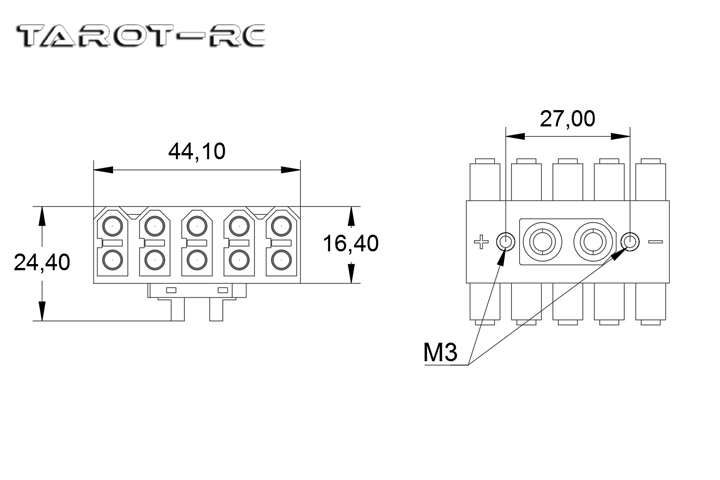

Half round head screws(M3*5mm)×2
