Product Description:

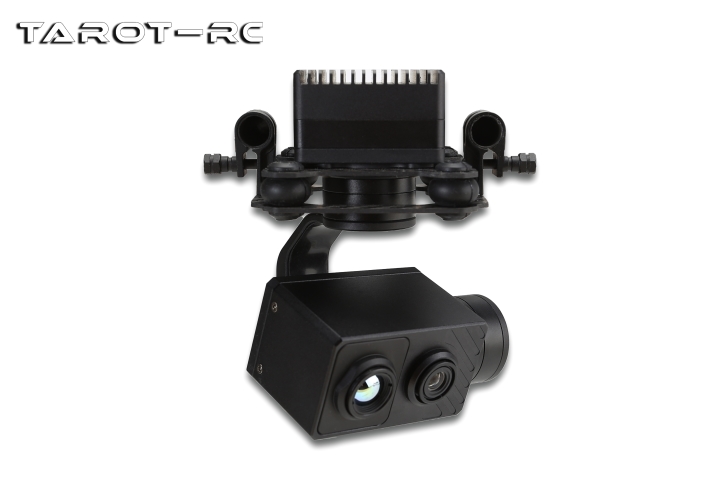

·TarotTL3T32 is a lightweight professional 3-axis dual-sensor gimbal for powerinspection, firefighting and many other industries;
·Ithas a built-in independent IMU to precisely control the gimbal's attitude,integrates a dedicated servo drive module for the gimbal, and supports twoworking modes: Yaw follow and Yaw lock;

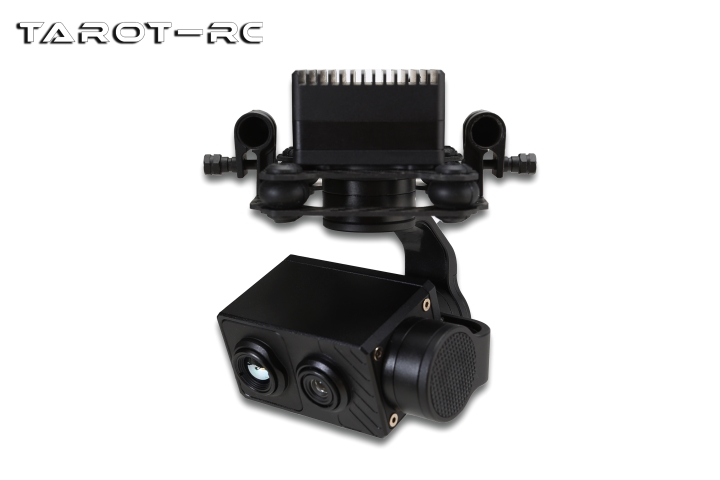

·Equippedwith professional grade 384 thermal imaging and 1080P visible light camera;
·Itcan be widely used in fire fighting, forest public security, public securitymonitoring, search and rescue, environmental protection law enforcement andother industries.
Product Features:

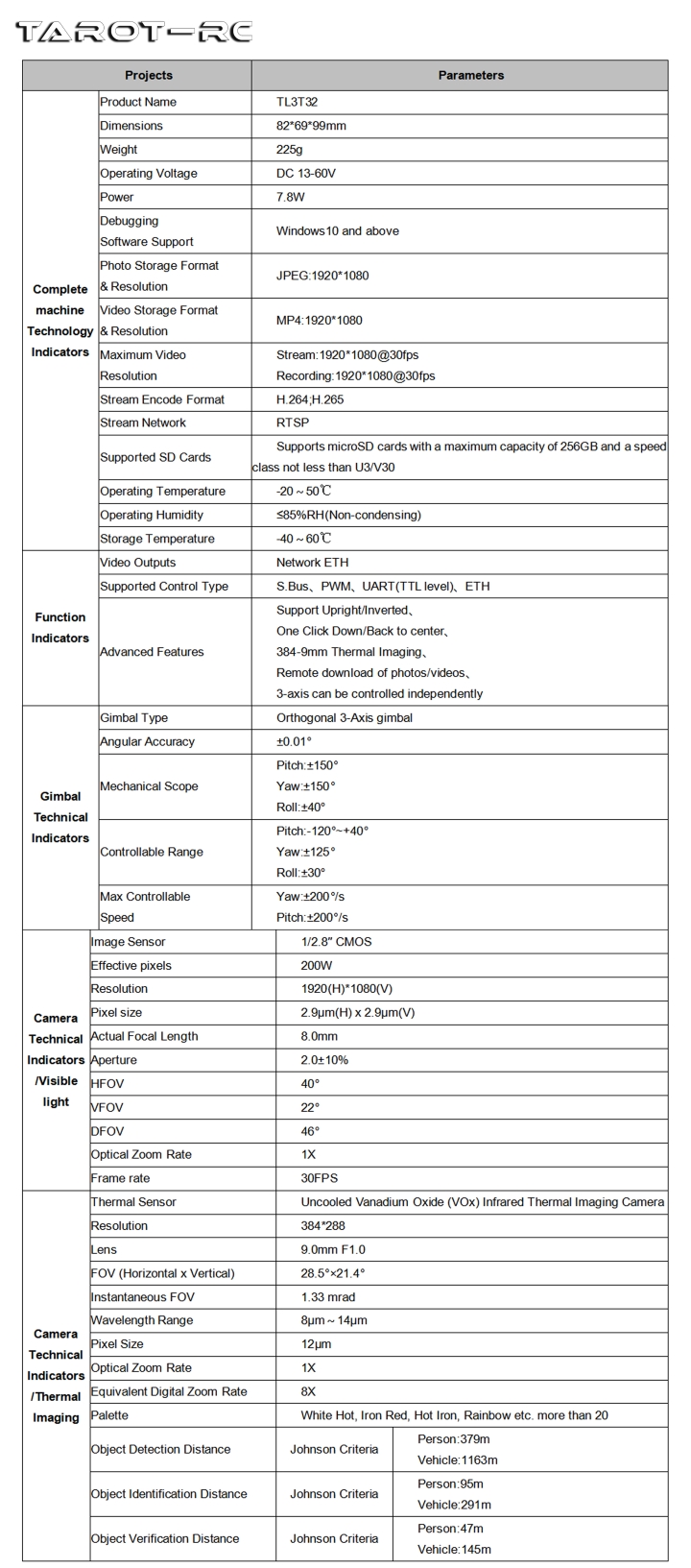

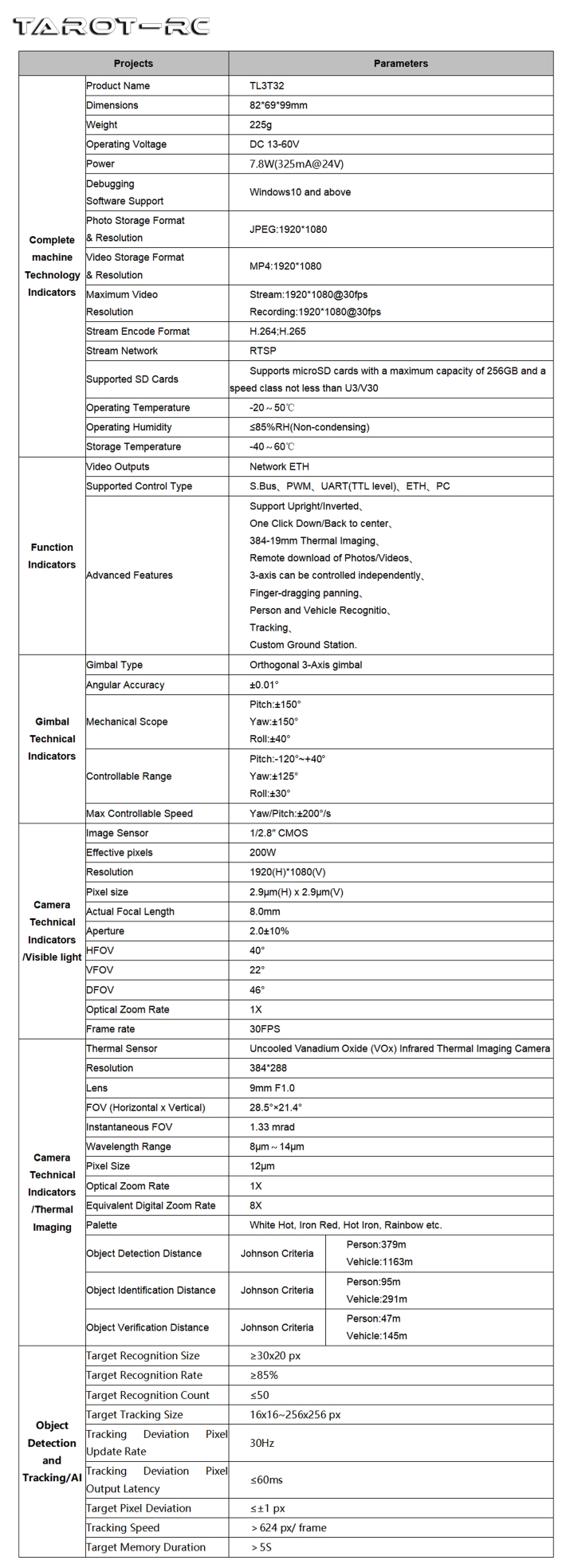

1.Total weight of gimbal: 225g;
2.1X fixed-focus visible light: 1920*1080; 8X temperature-measuring thermal imaging: 384*288;
3.Gimbal supports wide voltage DC input: 13-60V;
4.Mechanical three-axis stabilization with ±0.01° precision;
5.Aluminum alloy construction for lightweight durability and superior heat dissipation;
6.Highly optimized servo motor vector control algorithm;
7.True independent control of all three axes (Yaw, Pitch, Roll);
8.Pitch and Yaw axis support Angle mode and Rate mode control;
9.Supports both Upright and Inverted mounting (inverted orientation automatically detected and activated within 30 seconds of power-on);

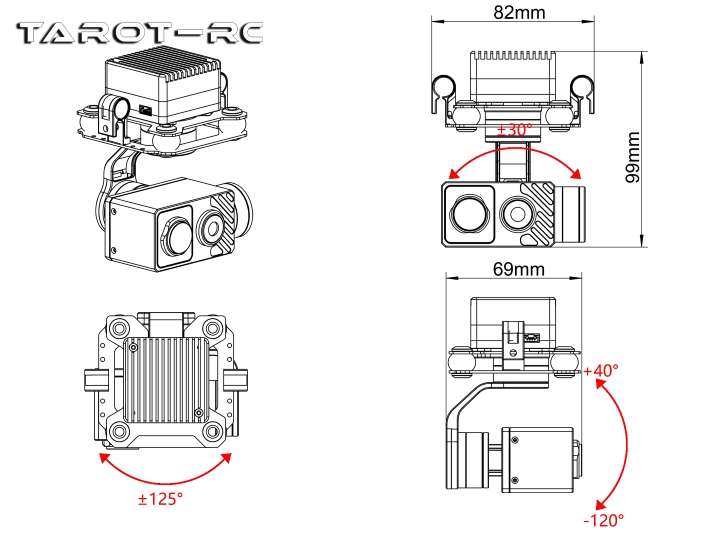

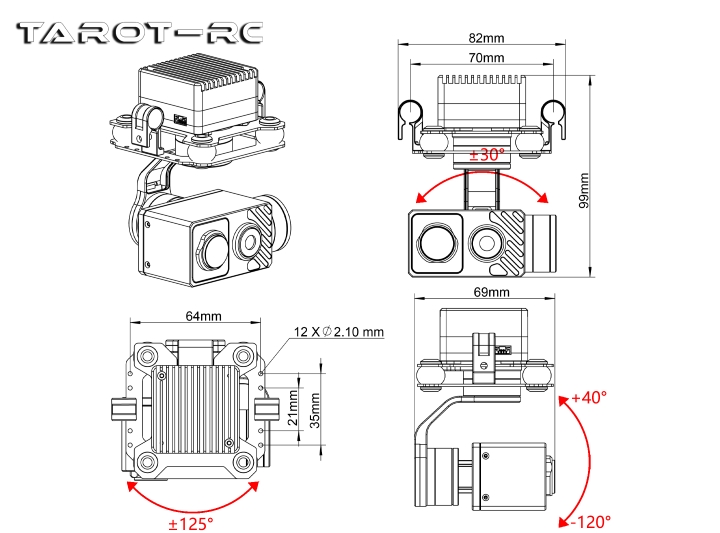

10.Controllable Yaw angle: ±125°;
11.Controllable Pitch angle: -120° to +40°;
12.Controllable Roll angle: ±30°;
13.Supports One Click 90° downward and Back to center operations;

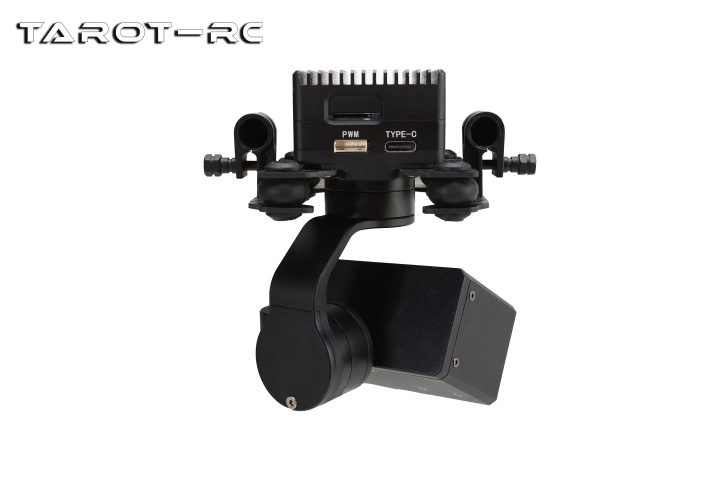

14.Supports S.Bus control, four-channel PWM control, serial UART control, network ETH control, and PC control;
15.Network protocol RTSP video output mode;

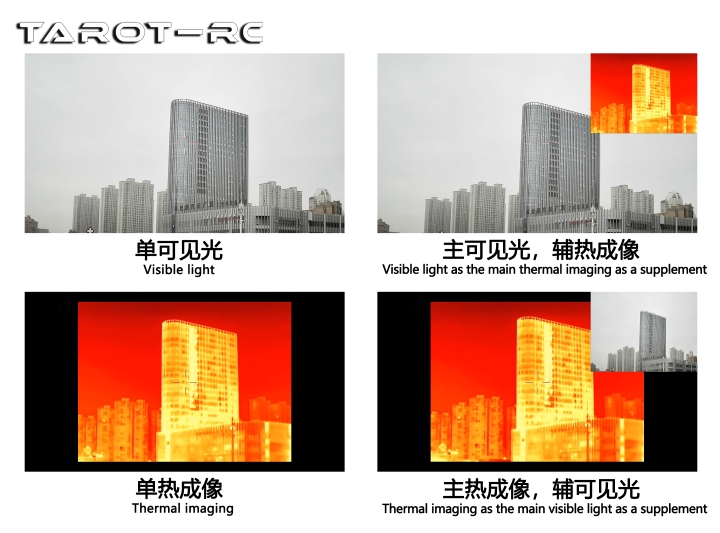

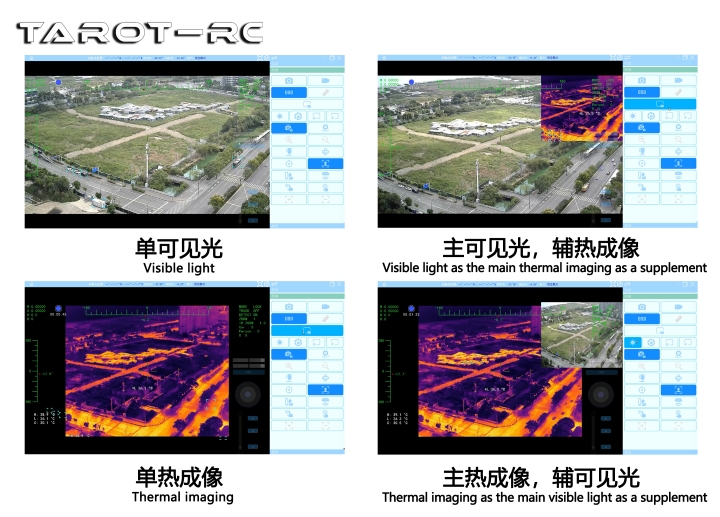

16.Supports four PIP switching video outputs for visible light and thermal imaging;

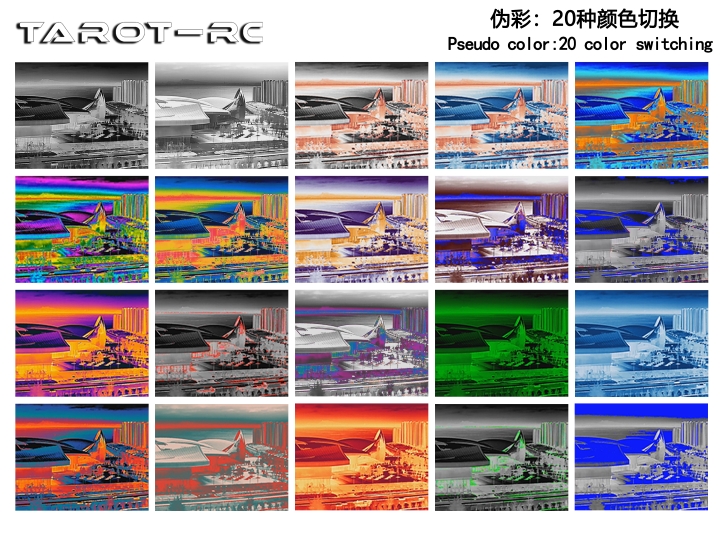

17.Thermal imaging supports 20 pseudo-color output modes;
18.Supports finger-dragging panning;
19.Supports person and vehicle recognition;
20.Supports target tracking;
21.Supports online download of photo and video files;
22.Customized dedicated ground station PC/Android GCS software enables display and control operations.
Packing List:
TL3T22 gimbal ×1
Accessory Cable kit ×1
