Product Description:

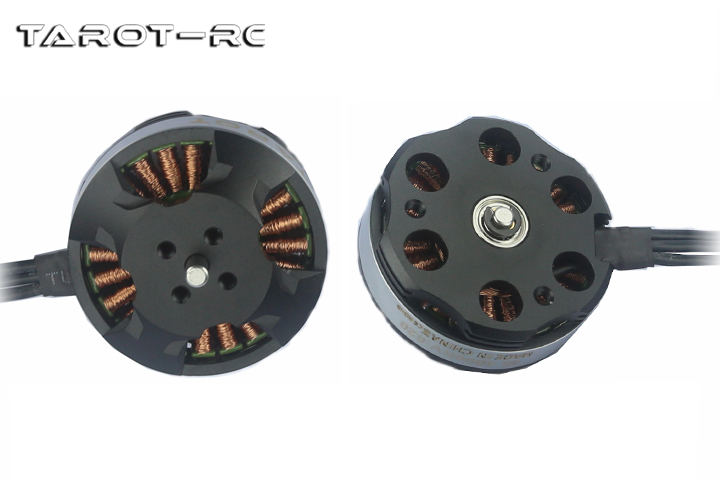

·4006/620KV high efficiency Multicopter brushless motors designed for 4-axis and 6-axis multi-rotors
·Made by high precision full CNC machining
·Smooth and unmarked outer flat sheet with excellent balance
·Newly designed high-efficiency vortex fan top cover provides powerful cooling airflow
·The rotor is made of neodymium iron boron, a highly magnetic material
·The stator is protected by high-strength epoxy resin reinforced with pressure to resist high temperature
·22P high flux outer rotor motor with special balance correction
·Improved the vibration problem caused by poor balance of common external rotating motors
·Motor shaft is made of high speed alloy steel
·Motor upper and lower covers adopt large-size high-speed precision bearings
·With the advantages of low friction torque, low power loss, impact resistance, strong radial support at instantaneous high speed, etc.
·4006/KV620 new generation brushless motor has passed strict dynamic, static, magnetic field characteristics, strong magnetic high temperature resistance, demagnetization loss, motion vibration, noise, load performance and other engineering technology demonstration
·Continued to inherit the superior characteristics of TAROT brushless motor: long life, high efficiency, low power consumption, low noise, and stable control
Product Parameters:
Motor peripheral diameter:46mm
Stator diameter:40.6mm
Stator end thickness:6mm
Stator ends:24 slots
Motor poles:22P
Wire diameter:0.23mm
Gear shaft installation diameter:￠4mm
Motor height:22.0mm
Total length of motor shaft:30.50 mm
Speed per volt:620 RPM/Volt
Motor weight:82g
Motor internal resistance:126 mΩ
14.8V no-load current:0.8A
14.8 load current:14A
4006 brushless motor mounting specification:27.7mm equilateral triangle

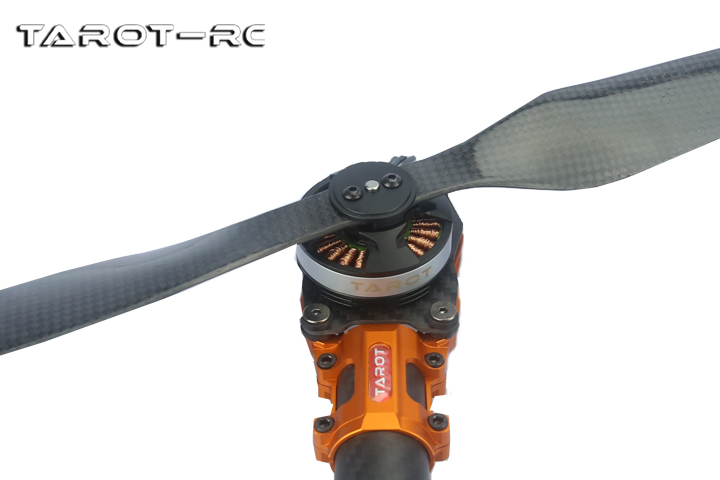

Propeller mounting specifications:Main hole diameter 4mm,Side hole diameter 3mm,Center distance 12mm
Product Specifications:
4006/620KV brushless motor(82g) ×1
Cup head screw(M3×6mm) ×3
Half-round head screws(M3×8mm) ×2
Metal rotor mounting piece(2.5g) ×1
