Tarot Image Transmitter/1.2G/8-channel/Adjustable Power/800mW VTX TL300N5-01
Products

Product:Tarot Image Transmitter/1.2G/8-channel/Adjustable Power/800mW VTX TL300N5-01

Category:Image Transmission/Camera/Antennas

Price:320 RMB

Date:2023-10-14

Hits:22056



Product Description:

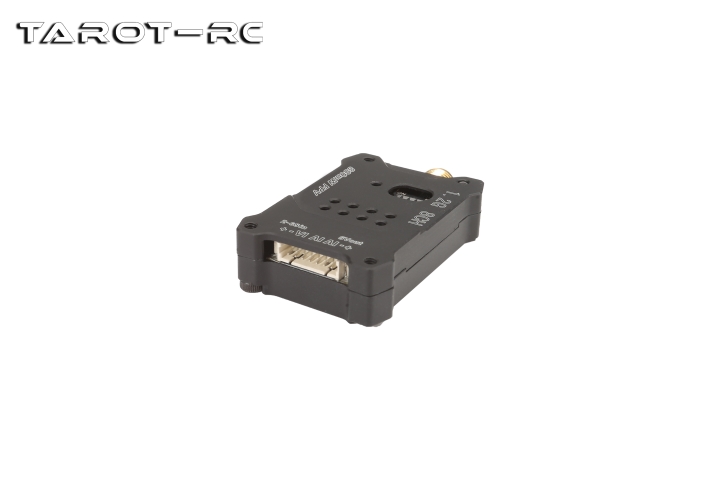

·Tarot's Newly Upgraded 8-Channel, 800mW 1.2G Audio,Video Transmission System;
·Ultra-miniature form factor and ultra-light weight;
·Adopt 6061T6 aluminum alloy shell heat dissipation;
·Particularly suitable for multi-axis drone and FPV drone long distance use.


Product Features:
1.8 channels output,dialable code switching,compatible with conventional frequency;
2.Provide 1-way video signal,2-way audio signal input;
3.Provide 1-way 5V/1A power output for conventional camera power supply(please first confirm the relevant equipment voltage and current to avoid burning);
4.800mW transmission transmitter,more suitable for long distance image transmission;
5.6061T6 aluminum alloy shell heat dissipation,the use of performance is more stable.


Product Parameters:
/Transmitter(Air Unit):
Input voltage:7-26V DC (2-6S)
Output voltage:Including all the way 5V/1A
Weight:8.2g(without metal case),16g(with case,without antenna)

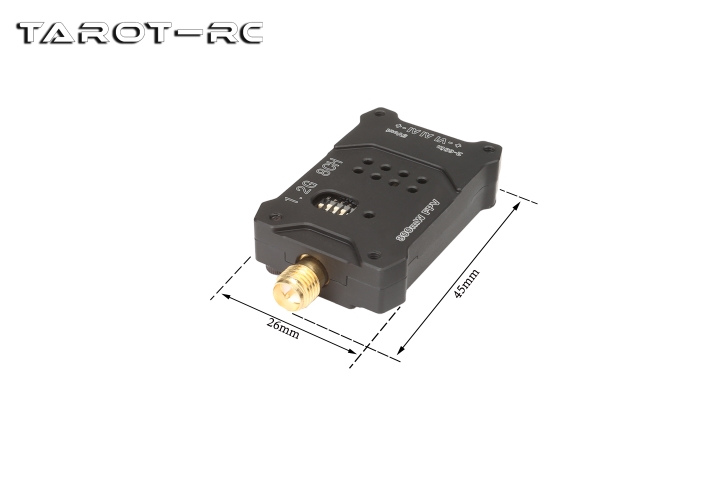

Dimensions (L*W*H):45mm*26*mm*8.5mm
Number of channels:8 channels
Channel selection:3-position mini dip switch switch (position 1-3)
Transmitting frequency:
1080MHZ/1120MHz/1160MHz/1200MHz/1240MHz/1280MHz/1320MHz/1360MHz
Transmitting power:28dBm±1dBm(800mW)
Power Adjustment:2-digit mini dip switch switch (position 4-5)
Power number: four positions, micro power/25mW/200mW/800mW
Antenna interface:RP-SMA(external threaded female pin) 50Ω
Operating ambient temperature:-10 to 60 degrees Celsius
Modulation type:FM


Caution:
1.Please install the antenna before turning on the power to avoid equipment failure;
2.Select the appropriate operating frequency,and set the transmitter and receiver to the same frequency(see frequency table);
3.Transmitter power is large,do not touch the shell with your hands to avoid burns when working(shell hot is a normal phenomenon,please rest assured that the use of);
4.Remove the shell for installation due to the need to reduce the weight,you can also use the product normally,but the transmitter power will be slightly reduced due to the temperature of the transmitter;
5.Input voltage is 7-26V (2-6S),please do not use beyond the voltage range;
6.Output voltage current is 5V/1A,please note whether the camera is within the voltage current range,if the product current is greater than the limit of 1A,please do not use the voltage output of this product,otherwise it may lead to damage to the transmitter power supply module.

Product Specifications:
1.2G 800mW TX ×1
TX connection cable/7P(200mm) ×1
1.2G antenna/Y-type ×1
