120 FPV Racing Drone /Set TL120H1
Products

Product：120 FPV Racing Drone /Set TL120H1

Category：Multi-copter Frame

Price：528 RMB

Date：2016-04-29

Hits：15546

Product description:
Tarot 120 FPV racing drone to a visual novel extremely delicate feeling, bring be not of the common sort through experience. Contains battery machine takeoff weight weighs 132 g, inherited the Tarot usual overall design standard. So many wonderful ingenuity to can be in the cross machine found success.

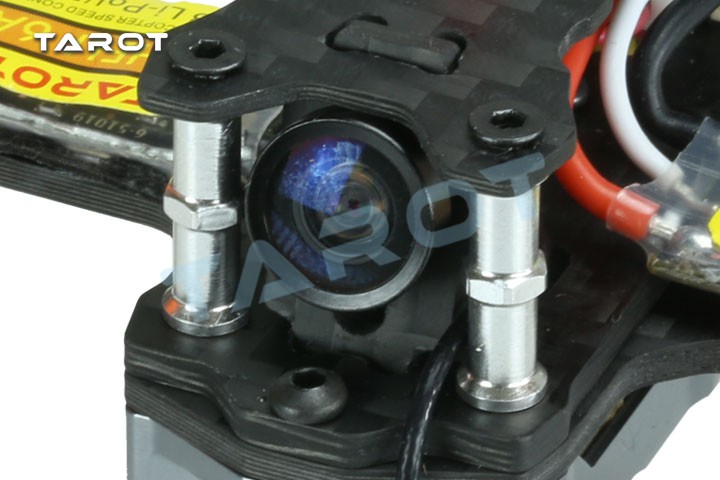

Design of micro camera free adjustable angle

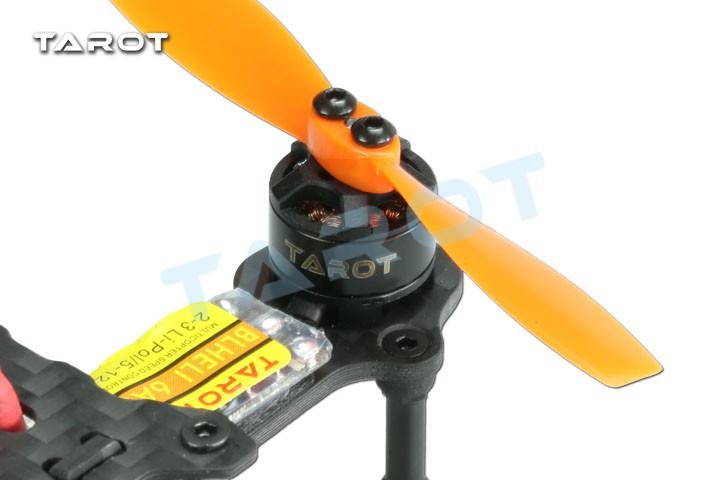

Strong brushless power

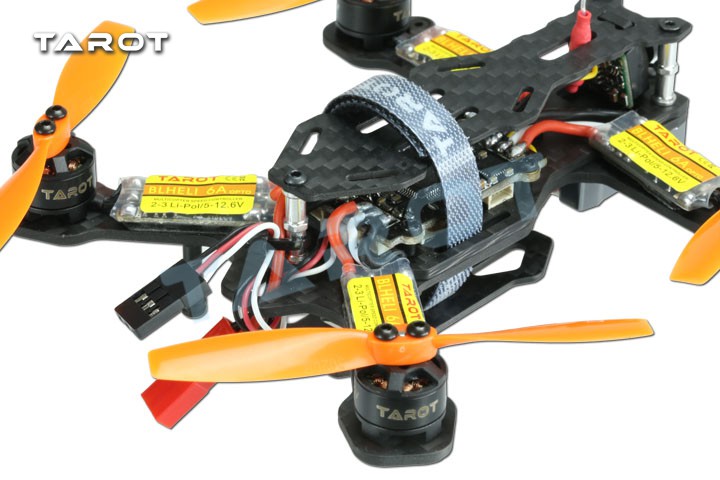

Ultra small ESC 6A
300MW Mini Map
Design of all carbon fiber frame
Custom suspension tripod
Reliable power supply connection
Super light six angle aluminum column
Miniature image transmitting antenna
Metal CNC drawing shell heat sink
Anti slip design
Ultimate compact integral
Flight mode free switching
The flight control firmware default channel CH5 control frame stability / manual mode
Self stabilization mode: flight control LED red light, buzzer sound
Manual mode: flight control LED red light, buzzer sound
Related product number:
     120 FPV race through the machine TL120H1/ TL120H2/TL120H3/
     130 FPV race through the machine TL130H1/ TL130H3&#160 TL130H2/
     150 FPV race through the machine TL150H1/ TL150H2 TL150H3/
     180 FPV race through the machine TL180H1/ TL180H2TL180H3/
Recommended number of related equipment:
      The level of flight control: Standard TL300D
      Brushless motor: Standard MT1104/TL150M1
      The upgraded version required MT1106 (TL150M2/TL150M3)
      ESC: Standard 6A ESC/TL300G
      Specifications: standard 3 inch propeller rotor TL150S1 (8PCS)
      Upgrade is required TL150S2
      Camera: Standard NTSC standard TL300MN2/PAL standard TL300M1 (1PCS)
      Figure 5.8G300MW wireless transmitter: Standard TL300N2
      Figure 5.8G: Standard TL300K4 transmission antenna
      Lithium polymer battery: buy (35C 450MAH 11.1V TL150A2 lithium polymer battery)
      SBUS or PPM receiver: buy TL150F1
Product parameters:
Wheelbase: 120MM
Empty frame height / height: 45MM 23MM/
Frame length / total length: 109MM/185MM
Rack width / assembly width: 111MM/187MM
Empty machine / machine / takeoff weight: 29G/87G/132G
Product specifications:
120 FPV racing drone/ Kit * 1
Battery magic stick * 1
Battery bar band x 1
Manual * 1
